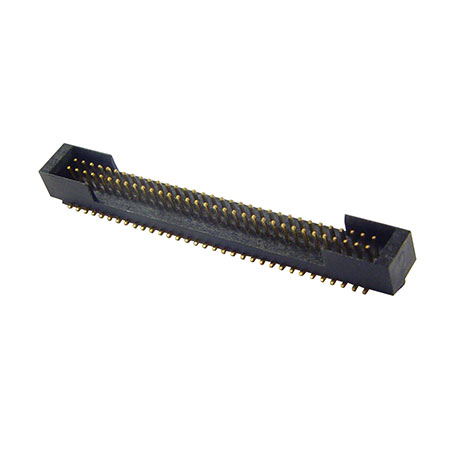

1 mm Box Header

Item No.:

BHNB-10M032-XXXX

Supplier Details

Country: Taiwan

State: TAIWAN (R.O.C)

City: New Taipei City 235

Address: 4F., No. 123, Lide St., Zhonghe Dist.

TEL: +886-2-82276428

Fax: +886-2-82276427

Online Showroom: 93 Products

Application : BOX HEADER CONNECTOR
Normally only used in combination with insulation-displacement connectors (IDC) for ribbon cables. A notch (key) in the guide box normally prevents placing the connector (polarised by a "bump" on one side) the wrong way around.
For Electronic Products, Industrial Computers, Communication Systems, Aftermarket parts etc.
Solder Type : SMT
Row of Plastic : Dual Row
Current Rating : 1A
Insulator Resistance : 1,000MΩ minimum
Contact Resistance : 20mΩ maximum
Dielectric Withstanding Voltage : 500V AC for 1 minute
Operating Temperature : -40 to 105°C
Contact Material : Brass
Insulator Material : Nylon-9T UL94V-0, Gold, Tin or duplex-plated
Duplex Plating : Gold-plated on contact area / Tin on solder area
Number of Contact : 66 PINS
Safety Certification : ISO9001, ISO14000 and Rohs Compliance
Material : PA46, PA6T, PBT, PA9T, LCP
General packing standard : Using lastic tray and carton box, also accept customized.
We offer ODM and OEM services
We practice the core principles in design and manufacturing all connector and cable products.
Quality Assurance :
Sincere State Electronic is a professional international manufacturer with more 20 years experience. Main products are wire to board connectors,wire to wire connectors, wire harness, cable assemblies and connector tooling/model development manufacturing. And its products are compatible with West Europe, the North United States, Japan, South Korea, Middle-East and other international brands connectors.
