Annealing Furnace
| Item No.: | VMK series |
Supplier Details
Country: Taiwan
City: Kaohsiung City 802
Address: 3F.-2, No.372, Zhongzheng 1st Rd., Lingya Dist.
TEL: +886-7-7225117
Fax: +886-7-7232465
Online Showroom:
74 Products
Specification:
1. Max temperature: 1200℃
2. Chamber inner dimension: 250x400x250mm
3. Capacity: 25L
4. Power: 3.75kw
5. Laboratory furnaces for universal applications. Easy operation, fast heating- and cooling cycles. Stainless steel housing for corrosive environments. Standard PID controller with 1 heating ramp.
6. Option: Exhaust device, gas flushing, post combustion burner, program controller with max. 4-program steps. Program controller SE 40 Li with 25 programs and steps each, interface for PC.
【Brand： Linn/German 】
1. Max temperature: 1200℃
2. Chamber inner dimension: 250x400x250mm
3. Capacity: 25L
4. Power: 3.75kw
5. Laboratory furnaces for universal applications. Easy operation, fast heating- and cooling cycles. Stainless steel housing for corrosive environments. Standard PID controller with 1 heating ramp.
6. Option: Exhaust device, gas flushing, post combustion burner, program controller with max. 4-program steps. Program controller SE 40 Li with 25 programs and steps each, interface for PC.
【Brand： Linn/German 】
| VMK series Tmax 1200 °C | |||
| Model | Liters | inside dimensions (mm) | Kw |
| VMK 10 | 1,0 | 100 x 100 x 100 | 0,6 |
| VMK 22 | 2,2 | 130 x 170 x 100 | 0,9 |
| VMK 39 | 3,9 | 180 x 200 x 110 | 1,3 |
| VMK 80 | 7,7 | 210 x 230 x 160 | 2,1 |
| VMK 135 | 13,5 | 250 x 300 x 180 | 2,6 |

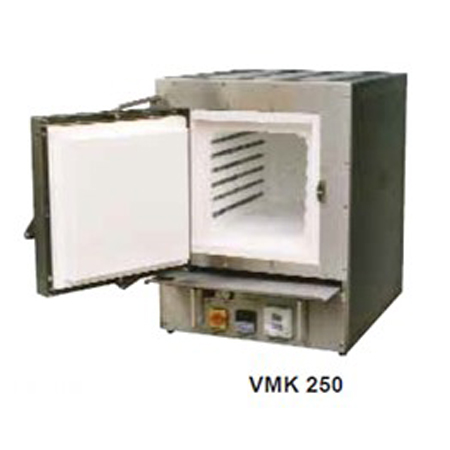

| VMK 250 | 25,0 | 250 x 400 x 250 | 3,75 |
