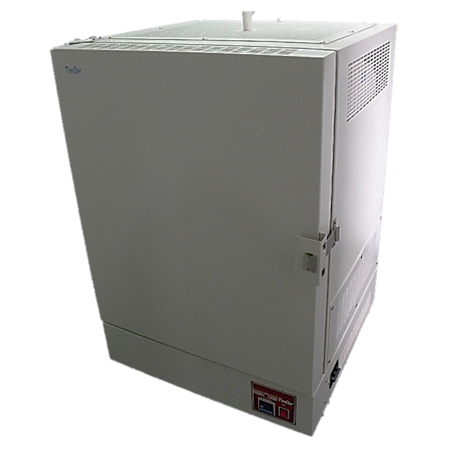

High Temperature Muffle Furnace
| Item No.: | F-14-5 |
Supplier Details
Country: Taiwan
City: Kaohsiung City 802
Address: 3F.-2, No.372, Zhongzheng 1st Rd., Lingya Dist.
TEL: +886-7-7225117
Fax: +886-7-7232465
Online Showroom:
74 Products
1. Max. temperature：1400℃~1600℃ Common temperature：1350℃~1550℃
2. OD：H150 x W140 x D250 mm ID：H700 x W500 x D720 mm
3. Temperature Accuracy：+-1 ℃
4. The maximum power consumption：4.5 kw
5. Temp. controller：Japanese PID touch model microcomputer automatic mathematical exercise & LED double display or programmable temperature controllers 4 pattern, 10 steps/pattern.
6. Furnace design：The use of double construction provided chamber temperature uniformity and allows natural air convection to maintain a cool outer case. The furnace is solid with high quality coating exterior and strengthen construction design.
7. Chamber design：Use the heating element of Thermcraft/USA, material containing Al2O3 99%, element wire embedded type.
8. Door design: side open design, lightweight and flexible operation.
9. Lined with refractory material off the hot 1400 ℃, Furnace board density: 220kg / m3, Heating loss: 6.5%, Thermoelectric conductance: 0.26W / m.k. , Divided into two layers, breaking heat, insulation, lining.
10. Heat insulation refractory to 1400 ℃, furnace board density: 220kg / m3, Heating loss: 6.5%, Thermoelectric conductance: 0.26W / m.k. , Divided into two layers, breaking heat, insulation, lining.
11. The interior is imported original ceramic stove board.
12. The heating element: Imported spiral heating element.
13. Power: 220V / 3N
【Brand： Tender/ Taiwan 】
2. OD：H150 x W140 x D250 mm ID：H700 x W500 x D720 mm
3. Temperature Accuracy：+-1 ℃
4. The maximum power consumption：4.5 kw
5. Temp. controller：Japanese PID touch model microcomputer automatic mathematical exercise & LED double display or programmable temperature controllers 4 pattern, 10 steps/pattern.
6. Furnace design：The use of double construction provided chamber temperature uniformity and allows natural air convection to maintain a cool outer case. The furnace is solid with high quality coating exterior and strengthen construction design.
7. Chamber design：Use the heating element of Thermcraft/USA, material containing Al2O3 99%, element wire embedded type.
8. Door design: side open design, lightweight and flexible operation.
9. Lined with refractory material off the hot 1400 ℃, Furnace board density: 220kg / m3, Heating loss: 6.5%, Thermoelectric conductance: 0.26W / m.k. , Divided into two layers, breaking heat, insulation, lining.
10. Heat insulation refractory to 1400 ℃, furnace board density: 220kg / m3, Heating loss: 6.5%, Thermoelectric conductance: 0.26W / m.k. , Divided into two layers, breaking heat, insulation, lining.
11. The interior is imported original ceramic stove board.
12. The heating element: Imported spiral heating element.
13. Power: 220V / 3N
【Brand： Tender/ Taiwan 】
| Model No. | Max. Temp.℃ | Internal Dimension W/H/D(mm) | External Dimension W/H/D(mm) | Capacity (L) | Max. Power (kw) | Weight(kg) |
| F-14-5 | 1350 | 150/140/250 | 700/500/720 | 5.25 | 3.5 | 58 |
| F-14-10 | 1350 | 190/180/310 | 755/605/820 | 10.6 | 6.0 | 74 |
| F-14-27 | 1350 | 290/270/340 | 870/715/860 | 27 | 11.0 | 110 |
| F-15-5 | 1450 | 150/140/250 | 700/555/720 | 5.25 | 4.5 | 58 |
| F-15-10 | 1450 | 190/180/310 | 755/605/820 | 10.6 | 7.5 | 74 |
| F-15-27 | 1450 | 290/270/340 | 870/715/860 | 27 | 12 | 110 |
| F-16-5 | 1550 | 150/140/250 | 700/555/720 | 5.25 | 5.0 | 59 |
| F-16-10 | 1550 | 190/180/310 | 755/605/820 | 10.6 | 10.0 | 74 |
| F-16-21 | 1550 | 255/240/340 | 1070/950/860 | 21 | 14.0 | 236 |
