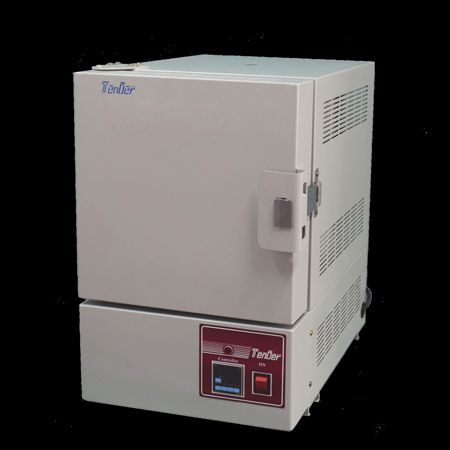

Lab Furnaces
| Item No.: | F-12-3.3 |
Supplier Details
Country: Taiwan
City: Kaohsiung City 802
Address: 3F.-2, No.372, Zhongzheng 1st Rd., Lingya Dist.
TEL: +886-7-7225117
Fax: +886-7-7232465
Online Showroom:
74 Products
1. Max. temperature：1200℃
2. Common temperature：1150℃
3. ID：150W x 150H x 150D (mm)
4. Capacity：3.3L
5. Furnace design：The use of double skin construction provided chamber temperature uniformity and allows natural air convection to maintain a cool outer case. The furnace is solid with high quality coating exterior and strengthen construction design.
6. Chamber design：Use the heating element of Thermcraft/USA, material containing Al2O3 99%, element wire embedded type.
7. Al2O3 heating plate and wire one-piece low thermal mass heating element safety and durable。
8. Insulated door: side open design, lightweight and flexible operation.
9. Temp. controller：Japanese PID touch model microcomputer automatic mathematical exercise & LED double display or programmable temperature controllers 4 pattern, 10 steps/ pattern.
10. Programmable controllers：Pattern switch is easily done by key operation. Two Alarm outputs, Time signal output, RUN output and one event output to signal Pattern end output are equipped as standard functions.
11. Power supply: 100 to 240V AC50/60Hz, 24V AC/DC 50/60Hz
【Brand： Tender/ Taiwan 】
2. Common temperature：1150℃
3. ID：150W x 150H x 150D (mm)
4. Capacity：3.3L
5. Furnace design：The use of double skin construction provided chamber temperature uniformity and allows natural air convection to maintain a cool outer case. The furnace is solid with high quality coating exterior and strengthen construction design.
6. Chamber design：Use the heating element of Thermcraft/USA, material containing Al2O3 99%, element wire embedded type.
7. Al2O3 heating plate and wire one-piece low thermal mass heating element safety and durable。
8. Insulated door: side open design, lightweight and flexible operation.
9. Temp. controller：Japanese PID touch model microcomputer automatic mathematical exercise & LED double display or programmable temperature controllers 4 pattern, 10 steps/ pattern.
10. Programmable controllers：Pattern switch is easily done by key operation. Two Alarm outputs, Time signal output, RUN output and one event output to signal Pattern end output are equipped as standard functions.
11. Power supply: 100 to 240V AC50/60Hz, 24V AC/DC 50/60Hz
【Brand： Tender/ Taiwan 】
| Model No. | Max. Temp.℃ | Internal Dimension W/H/D(mm) | Capacity (L) | Max. Power (kw) | Power |
| F-12-3.3 | 1204 | 150/150/150 | 3.3 | 2.4 | 220V |
| F-12-6.3 | 1204 | 158/133/300 | 6.3 | 3.2 | 220V |
| F-12-9 | 1204 | 190/158/300 | 9 | 3.6 | 220V |
| F-12-17 | 1204 | 257/225/300 | 17.3 | 6.5 | 220V |
| F-12-27 | 1204 | 300/300/300 | 27 | 8 | 220V |
| F-12-47 | 1204 | 320/327/457 | 47.8 | 16 | 220V |
