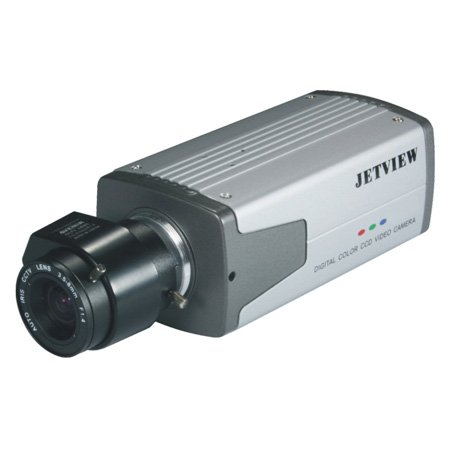

Box Camera
Item No.: | B9 Series |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654

Online Showroom:
57 Products
Key Features:
* 1/3" Sony Super HAD
* Resolution: 420TVL
* Operation Temperature: -15℃~55℃
* Minimum Illumination: 0.5Lux/F1.2
* AWB, AGC, BLC, AES
* Dual Boards chipset, more durable
Specification
* 1/3" Sony Super HAD
* Resolution: 420TVL
* Operation Temperature: -15℃~55℃
* Minimum Illumination: 0.5Lux/F1.2
* AWB, AGC, BLC, AES
* Dual Boards chipset, more durable
Specification
Model | JV-1MB9PZ | ||
JV-1MB9NZ | |||
Image Sensor | 1/3" Sony Super HAD | ||
Signal System | PAL/NTSC | ||
Effective Pixels | PAL: 500(H)×582(V) | ||
NTSC: 510(H)×492(V) | |||
Horizontal Resolution | 420TVL | ||
Minimum Illumination | 0.5Lux/F1.2 | ||
Synchronization System | Internal | ||
S/N Radiation | More than 48dB | ||
Electronic Shutter Speed | 1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC) | ||
Auto White Balance | |||
AGC | High / Low | ||
BLC | ON / OFF | ||
Auto Iris | DC/ Video | ||
Video Output | BNC 1.0Vp-p, 75Ohm | ||
Lens Mount Type | C/CS | ||
Power Supply | DC12V | ||
Consumed Current | 250mA (Max.) | ||
Operation Condition | -15℃~55℃, RH85% (Max.) | ||
Net Weight | 240G | ||
Gross Weight | 380G | ||
Product Dimension | 130 x 58 x 56mm (L×W×H) | ||
Pckage Dimension | 170 x 115 x 105mm (L×W×H) |
