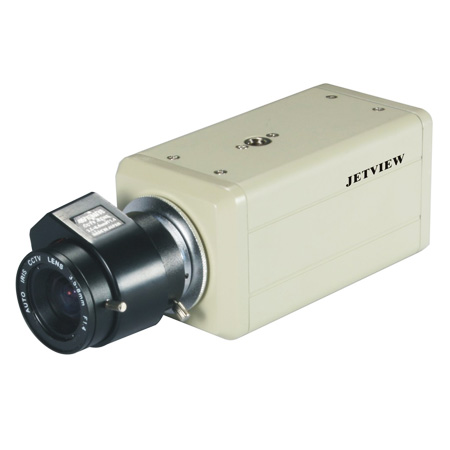

Box Camera - JT-1VB8PZ/ JT-1VB8NZ

Box Camera

Item No.: JT-1VB8PZ/ JT-1VB8NZ
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654
Online Showroom: 57 Products
Key Features:
* 1/4" Sharp
* Resolution: 420TVL
* Operation Temperature: -15℃~55℃
* Minimum Illumination: 1.0Lux/F1.2
* AWB, AGC, BLC, AES
* Dual Boards chipset, more durable

Specification
ModelJT-1VB8PZ
JT-1VB8NZ
Image Sensor1/4" Sharp
Signal SystemPAL/NTSC
Effective PixelsPAL: 512(H)×582(V)
NTSC: 512(H)×492(V)
Horizontal Resolution420TVL
Minimum Illumination1.0Lux/F1.2
Synchronization SystemInternal
S/N RadiationMore than 48dB
Electronic Shutter Speed1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC)
Auto White BalanceON / OFF
AGC
BLCON / OFF
Auto IrisDC/ Video
Video OutputBNC 1.0Vp-p, 75Ohm
Lens Mount TypeC/CS
Power SupplyDC12V
Consumed Current250mA (Max.)
Operation Condition -15℃~55℃, RH85% (Max.)
Net Weight240G
Gross Weight380G
Product Dimension120 x 52 x 52mm (L×W×H)
Package Dimension170 x 115 x 105mm (L×W×H)
