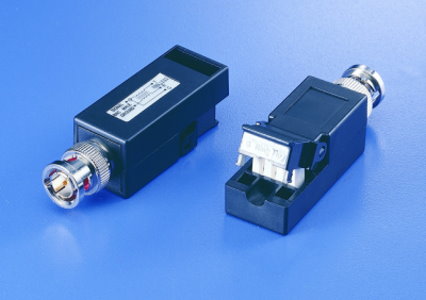

Toolless Type It is designed to terminate wires by hand, without punch down tool for faster and easier installation. The CCTV Video Balun allows baseband composite signal to be transmitted via a single unshielded twisted pair (UTP) cable for more versatile cabling. The CCTV Balun is used in pairs to allow you to eliminate more expensive coaxial cable, including coupling signals from remote video cameras to display systems, video retrieve, security and surveillance monitoring applications. The use of existing twisted pair infrastructure such as telephone cable and Cat.5 computer networking cables are also available. All our baluns are 100% test for reliability and durability to guarantee your signal integrity. ‧Specification 1. Cable-UTP: 24AWG or lower solid copper twisted pair wire   Impedance: 100 ohm at 1MHz   Max. Capacitance: 20pf/ ft   Attenuation: 6.6db/ 1000ft at 1MHz 2. Cable-BNC   Impedance: 75 ohm at 1MHz (RG59/U)   Max.25ft of coax allowed per end to end link 3. Max. Distance   Color: Cat.3 1200ft; Cat.5 2230ft   Monochrome: Cat.3 1500ft; Cat.5 2550ft 4. Temperature   Operating temp. 0 to 55°C   Storage temp. -22 to 85°C   Humidity up to 95% 5. No AC power or batteries needed   Bi-directional signal conversion   Ultra-miniature enclosure electrical ‧Electrical Characteristic and Performance 1. Bandwidth: Video DC to 8 MHz 2. Maximum input: 1.1 Vp-p 3. Impedance: 75 ohm to 100 ohm 4. Insertion Loss: Max. 2db per pair over the frequency range form DC to 8 MHz 5. Return Loss: Greater than 15db over the frequency range form DC to 8 MHz 6. Common mode rejection: Greater than 40db at 8 MHz
