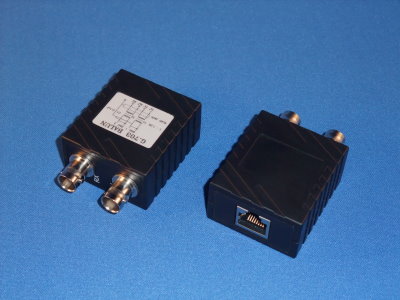

BNC-Female / RJ45-Female Balun
| Item No.: | 03-20G6-00 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY 251
Address: 1FL., NO.69-6, SEC.2, CHUNG CHENG E. RD., DANSHUI DIST., NEW TAIPEI CITY 251, TAIWAN (R.O.C.)
TEL: +886-2-28091533
Fax: +886-2-28091306
Online Showroom:
81 Products
Specification：
‧Data transmitted Rates：2-8 Mbps for E1(T1)/E2(T2)
‧Impedance matching：74 ohm to 120 ohm/100 ohm
‧Insertion Loss：Max.0.2dB(2Mbps);0.3dB(8 Mbps)
‧Return Loss：-29db for 2 Mbps , -21db for 8Mbps
‧NO AC Power
‧Operating Temperature：0 to 75°C
Cross talk:better than -80dB from 0.1 to 12MHz between any 2 baluns mounted distance up to 15mm
