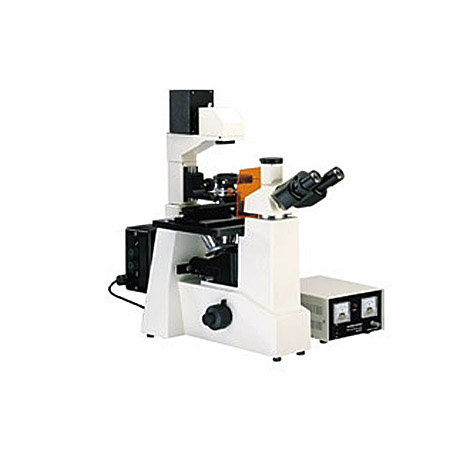

Inverted & Reflected Fluorescence Microscopes MF40,composed with inverted microscope and reflected fluorescence microscope, is equipped with long working distances plan achromatic objectives and wide field eyepieces. MF40 has features of clear image, wide field, compact framework, beautility sculpt and comfortable operation etc.
MF40's mainly applied to observe living cell, tissue, liquid, deposits and transparent living without staining and fluorescence slice up etc. MF40 is the ideal instrument for biology, cells cytology, oncology, genetics, immunology research etc.

Features of MF40:

▲ Wide field eyepieces, Long distance plan achromatic objectives. Field view widely and clear.

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.

▲ The mechanical stage movement mechanism can be taken out.

▲ Phase contrast unit includes long working distance condenser, phase contrast objective and centering telescope

▲ Fluorescence unit includes four groups of fluorescence filter.

▲ 6V 30W halogen lamp transmission illumination with brightness control. 100W high voltage mercury lamp, with outside power supply unit

Standard Configuration

Model	MF40
Eyepiece	Wide field eyepiece WF10X(¦µ20mm)
Objective	Long working distance plan achromatic objectives PL L 10X/0.25
	Long working distance plan achromatic objectives PL L 25X/0.40
	Long working distance plan achromatic objectives PL L 40X/0.60
	Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2
	Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2
	Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2
Eyepiece tube	Trinocular (Inclination of 30°, 100% image light for photography capable)
Focus system	Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Nosepiece	Quintuple (Ball bearing inner locating)
Stage	Double layer mechanical (Size: 224mmX208mm, moving range: 112mmX79mm)
Filter	Frosted filter
	Blue filter
	Green filter
Shelf of specimen	Match to install ¦µ68mm or 77mmX29mm culture utensil
	Match to install 82mmX57mm culture utensil
	Match to install 128mmX85mm 96 holes culture utensil
Reflected fluorescence system	Mercury lamp house 100W/DC
	Power supply unit:AV:110V or 220V
	Fluorescence filter system B exciton wavelength:420~485nm
	Fluorescence filter system G exciton wavelength:460~550nm
	Fluorescence filter system UV exciton wavelength:330~400nm
	Fluorescence filter system V exciton wavelength:395~415nm
Turnplate phase contrast unit	Centering telescope
Turnplate phase contrast unit	Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm

Optional accessories

Name	Sort/Technique parameter
Eyepiece	Wide field WF16X(¦µ11mm)
Eyepiece	Dividing 10X (¦µ20mm), 0.1mm/Div
Condenser	Ultra long working distance,W.D.:70mm
Filter	Yellow filter
Fluorescence power supply	100W fluorescence power supply(Wide voltage range and constant power and calculagraph)
Phase contras	Compensation phase contrast
Digital Camera	MD10/20/30/50/90
Digital Camera	MC15/20/30/50
Camera adapter	Canon, Nikon, Olympus SLR etc.
