Bio Rad Gel Imager
| Item No.: | 5-2,Bio-5000 Plus |
Supplier Details
Country: Taiwan
City: Hsinchu City 30075
Address: No. 6, Industry East Road 3, Science Based Industrial Park
TEL: +886-3-5772155
Fax: +886-3-5772598
Online Showroom:
55 Products
Professional Gel Imager
Gel Scanner for Electrophoresis Gel, SDS-PAGE, Western Blotting, and Biological Sample Either Dry or Wet

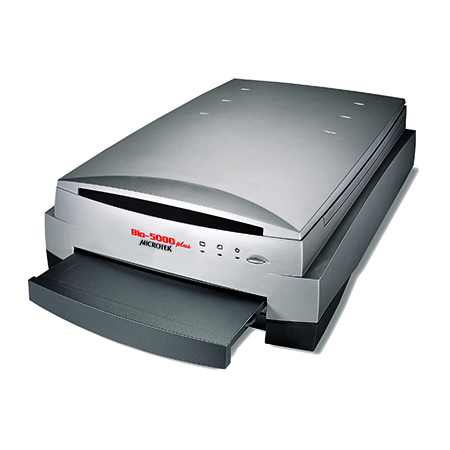

Microtek’s Bio-5000 Plus is a two-platform scanner specifically designed for the professionals who focus on scanning and studying of biological electrophoresis gels. It is equipped with an optical CCD whose resolution is up to 4800 dpi and the range, between 0.05D and 3.77D, of the optical density provides you a smarter way to capture differences among each layer of scanned electrophoresis gels. With a built-in Auto-Focus function, Bio-5000 Plus is capable of shifting the focal length to the best position automatically; thus you can get images with top quality. By the design of twin scan-bed, it is quite convenient to put your Bio-5000 Plus in operation and lowers the risks of mutual infection in experimentation. Therefore, Bio-5000 Plus is the best choice of scanning electrophoresis gels.
Features
Specifications
Optical Resolution： 4800 dpi (5 um spot size, 94 lp/mm)
Image Sensor Type： CCD
Light Source： LED
Color Modes： 48-bit/24-bit color, 16-bit/8-bit grayscale
Scanning Area： Reflective: 8.5" x 14" (216 x 356 mm)
Transparent: 8" X 10" (216 x 254 mm)
Scanning Speed： 10.13 sec @ 300 dpi, 8” x 10“
Optical Density： 0.05D ~ 3.7D, 3.77 Dmax
Dimensions (LxWxH)： 22.3" x 15.1" x 6.3" (567 x 385 x 158 mm)
Weight： 26.4 lbs. (12 kg)
OS Support： Windows
Gel Scanner for Electrophoresis Gel, SDS-PAGE, Western Blotting, and Biological Sample Either Dry or Wet
Microtek’s Bio-5000 Plus is a two-platform scanner specifically designed for the professionals who focus on scanning and studying of biological electrophoresis gels. It is equipped with an optical CCD whose resolution is up to 4800 dpi and the range, between 0.05D and 3.77D, of the optical density provides you a smarter way to capture differences among each layer of scanned electrophoresis gels. With a built-in Auto-Focus function, Bio-5000 Plus is capable of shifting the focal length to the best position automatically; thus you can get images with top quality. By the design of twin scan-bed, it is quite convenient to put your Bio-5000 Plus in operation and lowers the risks of mutual infection in experimentation. Therefore, Bio-5000 Plus is the best choice of scanning electrophoresis gels.
Features
- Dual-scan beds – 8” x 10” for gel & transparent film / 8.5” x14” for reflective
- Auto-focus ensures the best scanning quality
- Specially-designed removable leak-free glass holder
- No warm up time with energy-saving LED light source
- 0.05D ~ 3.7D optical density
- 4800 dpi optical resolution and CCD image sensor
- Delivers accurate images for both dry and wet gel samples
- Convenient MiBio software for gel image analysis
Specifications
Optical Resolution： 4800 dpi (5 um spot size, 94 lp/mm)
Image Sensor Type： CCD
Light Source： LED
Color Modes： 48-bit/24-bit color, 16-bit/8-bit grayscale
Scanning Area： Reflective: 8.5" x 14" (216 x 356 mm)
Transparent: 8" X 10" (216 x 254 mm)
Scanning Speed： 10.13 sec @ 300 dpi, 8” x 10“
Optical Density： 0.05D ~ 3.7D, 3.77 Dmax
Dimensions (LxWxH)： 22.3" x 15.1" x 6.3" (567 x 385 x 158 mm)
Weight： 26.4 lbs. (12 kg)
OS Support： Windows
