Ball Nose End Mill - 4-4

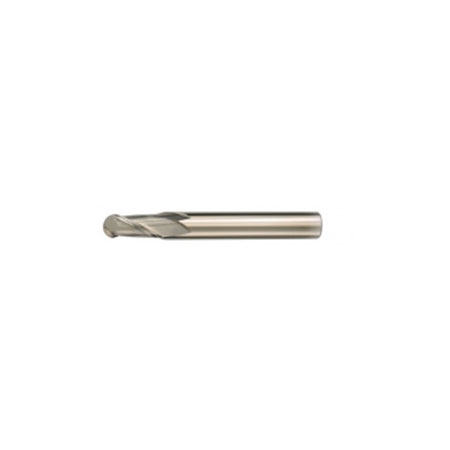

Ball Nose End Mill

Item No.: 4-4
Supplier Details
GEMTOOL CO., LTD.
Country: Taiwan
City: Taiwan
Address: No.95, Zhongzheng 2nd St., Yongkang Dist., Tainan City
TEL: +886-6-2426816
Fax: +886-6-2423818
Online Showroom: 59 Products
  1. Item: Tungsten Carbide Ball Nose – Regular / Long Neck / Long Shank
  2. Tungsten Carbide Grain size: 0.3 - 0.6μm
  3. Co(%): 8 - 11.5%
  4. Helix Angle: 35°
  5. R Angle: 0.2~10R
  6. Shank Diameter: 4.0~20.0 mm
  7. Full Length: 50~200 mm
  8. Effective Length: 2.0~36.0 mm
  9. Heat-resistant: up to 1100°
  10. CNC R.P.M.: ~25,000R.P.M.
  11. Coating: not-plated or AlTiN (for Long Neck / Long Shank)
  12. Workpiece materials: plastics, aluminum alloy, iron, copper alloy, cast iron, alloy steel, stainless steel, tool steel. (HRC45, HRC50, HRC55)
  13. Application: complete plunge milling, side milling, and slot milling in one process to effectively speed up production
  14. Key Feature: Ball Nose End Mills are commonly used for polishing the cutting surfaces and with the long shank can be used for the deeper work piece.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Ball Nose End Mill

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
