Bag Machine With Slit Seal And Patch Device
Item No.: | SV-HC-TS Series |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products

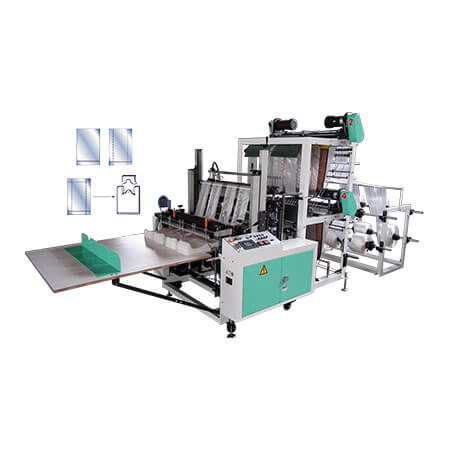

Servo Driven Multilane Bottom Seal and T-shirt Bag Making Machine
MACHINE FEATURE:
SPECIFICATIONS: P.S. Customization could be available.
Option equipment :
MACHINE FEATURE:
- Max. capacity 140 pieces / each line.
- Able choice 4 lines and Up to 8 lines synchronization making the same specifications.
- Fully digital control system with Human Machine Interface for data setting and showing.
- Sealing bar can be changed easily for T-shirt bag or plain bag.
- Out-feed by servo system, quick and easy length changes.
- Automatically stops for out of film, jam bags, temperature abnormal, safety...etc.
- Smart scissors adjustment design for the cutting knife, save your time and money.
- Freight control: 20FT container can loading 4sets SS-800VS4 or3 sets SS-1000VS4, and 40FT container can loading 8 sets SS-800VS4 or 7 sets SS-1000VS4 machine.
- Choose extra equipment to increase functions:
- Automatic table conveyor for stacks then move.
- Hot pin stack for T-shirt bag.
- Heavy duty bag equipment for making thick bags.
- More line equipment for 8 lines in line.
- Bottom silicon roller for sealing device, reduce the transfer resistance and increase sealing strength.
SPECIFICATIONS: P.S. Customization could be available.
Model | Bag Size(mm) | Production Sped (bags/min.) |
Thickness of Film (mm) |
Servo motor | Power Required | Machine Size xWxH(M) |
|||
Length | Width | Top Folding | Bottom Guessting |
||||||
SV-800HC | 65~760 | 76~770 | Up to 75mm | Up to 65mm | 30~250 | 0.01~0.2 | 2.9kw | 7.5KW | 4.6x1.55x2.0 |
SV-1000HC | 85~960 | 4.4kw | 9.0KW | 4.6x1.75x2.0 | |||||
SV-1200HC | 100~1150 | 4.4kw | 9.7KW | 4.6x1.95x2.1 |
Option equipment :
- Air Compressor:3HP
- Double Sealing device.
- Punching device
- Top-fold sealing device
- Self-adhensive Tape Feeding
- Perforating device
- Air shaft
- EPC with Auto unwinder
- Folder
