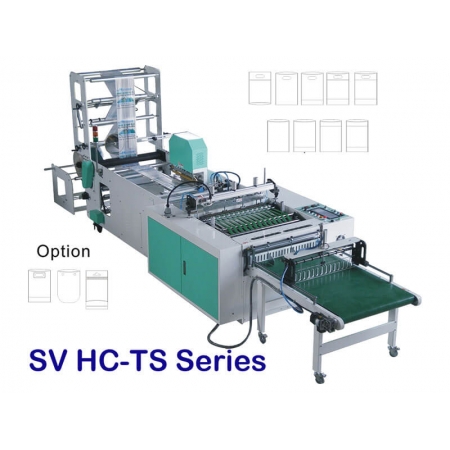

Bag Machine With Slit Seal And Patch Device
Item No.: | SV-HC-TS Series |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products
Bag Making Machine with Slit-Seal & Patch device
MACHINE FEATURE:
SPECIFICATIONS: P.S. Customization could be available.
Option equipment :
MACHINE FEATURE:
- The E.P.C. device combined with the unwinder, its function is sensitive and stable, easy operation.
- Fully automatic unwinder , unwinding speed auto adjust, no speed adjustment necssary.(Optional)
- Triangle folding device, easily and smoothly fold the single layer film to double.(Optional)
- In order to save space, you have choices of overlapping EPC and triangle folding device.
- Verstile application like patch & round corner punching.(Optional)
- Double lip folding device, bottom gusset device, side opening device (Trimming or side opening) are standard.
- Special rotary sealing knife design, make the cleaning of sealing knife safe, convenience, quick and easy.
- Special pneumatic gate and pressing roller device, cooperate with the main machine can carry and out-feed the blocked finished product.
- Strong and light structure, and cooperate with the rolling wheel with brake, can easily change the place.
- Optional equipments are: self-adhesive device, pearlinsertion device, punching unit, double sealing device, block out-feed device.
SPECIFICATIONS: P.S. Customization could be available.
Model | Bag Size(mm) | Production Sped (bags/min.) |
Thickness of Film (mm) |
Servo motor | Power Required | Machine Size xWxH(M) |
|||
Length | Width | Top Folding | Bottom Guessting |
||||||
SV-800HC | 65~760 | 76~770 | Up to 75mm | Up to 65mm | 30~250 | 0.01~0.2 | 2.9kw | 7.5KW | 4.6x1.55x2.0 |
SV-1000HC | 85~960 | 4.4kw | 9.0KW | 4.6x1.75x2.0 | |||||
SV-1200HC | 100~1150 | 4.4kw | 9.7KW | 4.6x1.95x2.1 |
Option equipment :
- Air Compressor:3HP
- Double Sealing device.
- Punching device
- Top-fold sealing device
- Self-adhensive Tape Feeding
- Perforating device
- Air shaft
- EPC with Auto unwinder
- Folder
