Axial Flow Pump-4 - YPFV

Axial Flow Pump-4

Item No.: YPFV
Supplier Details
XIANGSHENG MACHINERY & ELECTRIC INDUSTRIAL CO., LTD.
Country: Taiwan
City: Tainan City 709
Address: 1F., No. 68, Gongye 1st Rd., Annan Dist.
TEL: +886-06-3843601
Fax: +886-06-3843682
Online Showroom: 32 Products

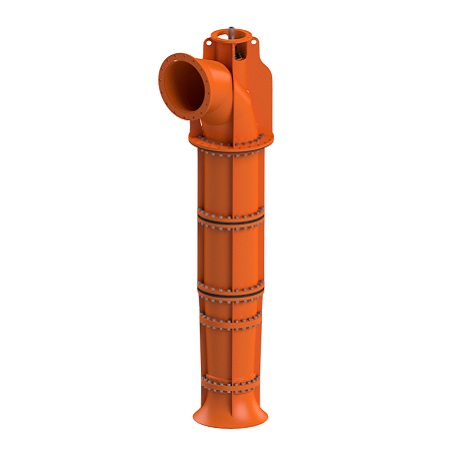

Vertical Axial Flow Pump

Application：
  • High flow rate and low total head, flood prevention, circle system.
Total head：1.62m - 6.9m
Flow rate：1.0cms - 2.9cms
Rotation rate：customization
Feature：
  1. Electric motor or diesel engine is available.
  2. The impeller has passed the dynamic balancing test.
  3. Install the flange at the appropriate preset height of the pipe string, and the drainage base can be arranged on the ground or underground.
  4. The bell shaped inlet provides a smooth waterway for the impeller to reduce the inlet loss
  5. Special design：Increase system pressure, Increase liquid level, Forced circulation, etc.
Material：
  1. Impeller：stainless steel or customization
  2. Shaft：stainless steel or customization
  3. Shaft coupling：stainless steel or customization
  4. Guide vane, suction bell, and impeller cover：Cast iron or customization.
  5. Wear-resisting ring：stainless steel or customization
Source：Taiwan
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Axial Flow Pump-4

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
