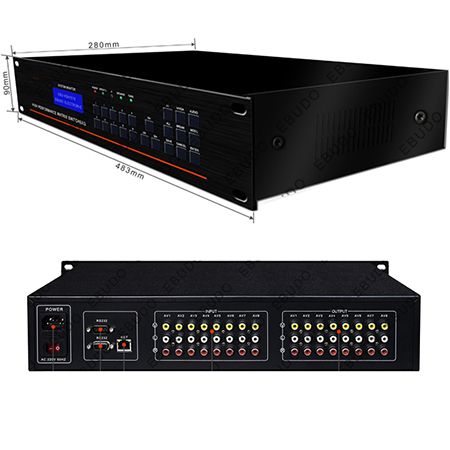

AV Matrix Switcher

AVxxyy matrix switcher brief:
AV matrix switcher（Audio and Video matrix switcher）provides features for audio and video signal switching and dispatching. Both choosing one from multiple inputs to specified output and also choosing anyone input to specified one or more outputs always work well.
AV matrix switcher can be used in various applications such as video wall, control room, meeting room, show room etc.

AV matrix switcher features:

1. Naming rule: EBD-AVxxyy
2. xxyy means the switcher has xx composite video and stereo audio inputs and yy composite video and stereo audio outputs. All input and output are fully cross switching.
3. Audio can be switched synchronously or asynchronously with video from same source.
4. Bundled 32bits ARM11 MCU, and support electrostatic protection and hot plug feature.
5. High bandwidth up to 200MHz Video co-processor for HDTV.
6. Provide auto gain compensation for long distance up to 300 meters transmission by using distortion compensation technology.
7. Support professional audio operation amplifier to make sounds mellow and rounded.
8. Using high brightness blue backlight LCM to display all channel status.
9. AV matrix switcher is bundled a switching scenario memory to prevent data loss while power failure and a key lock function.
10. AV matrix switcher has a buzzer inside, either ON or OFF switchable.

AV Matrix Switcher Highlight:

1. Switching loop and period are adjustable.
2. 32 scenario memory is selectable.
3. Provide 1 RJ45，2 RS-232 and 1 RS-485.

Control Ways:

1. Button Control: All switching functions can be done by push buttons on front panel of matrix switcher.
2. Remote Control: All switching functions can be done by IR remote controller.
3. Software Control: All switching functions can be done by using the specified software on WIN PC.

AV matrix switcher technical specification:

1. Switching timing: 50ms(maximum)
2. Video format: Composite video
3. Audio format: Stereo audio
4. Video Signal level: 0.5V ~ 2.0V p-p
5. Audio signal level: +19.5Vp-p
6. Audio Total Harmonic Distortion:0.03% @ 1 kHz (under Rating Voltage)
7. S/N ratio: ≥99dB
8. IO Jack: RCA
9. Protocol: 9600 N81
10. Serial interface: 2 = TX, 3 = RX, 5 = GND
11. Power: AC 110V-240V, 50 / 60 Hz

Popular models:
AV0808   8 Video + Stereo Audio IN,  8 Video + Stereo Audio OUT
AV1608  16 Video + Stereo Audio IN,  8 Video + Stereo Audio OUT
AV1616  16 Video + Stereo Audio IN, 16 Video + Stereo Audio OUT
AV2408  24 Video + Stereo Audio IN,  8 Video + Stereo Audio OUT
AV2416  24 Video + Stereo Audio IN, 16 Video + Stereo Audio OUT
AV2424  24 Video + Stereo Audio IN, 24 Video + Stereo Audio OUT
AV3208  32 Video + Stereo Audio IN,  8 Video + Stereo Audio OUT
AV3216  32 Video + Stereo Audio IN, 16 Video + Stereo Audio OUT
AV3224  32 Video + Stereo Audio IN, 24 Video + Stereo Audio OUT
AV3232  32 Video + Stereo Audio IN, 32 Video + Stereo Audio OUT
AV6408  64 Video + Stereo Audio IN,  8 Video + Stereo Audio OUT
AV6416  64 Video + Stereo Audio IN, 16 Video + Stereo Audio OUT
AV6424  64 Video + Stereo Audio IN, 24 Video + Stereo Audio OUT
AV6432  64 Video + Stereo Audio IN, 32 Video + Stereo Audio OUT
AV6464  64 Video + Stereo Audio IN, 64 Video + Stereo Audio OUT
