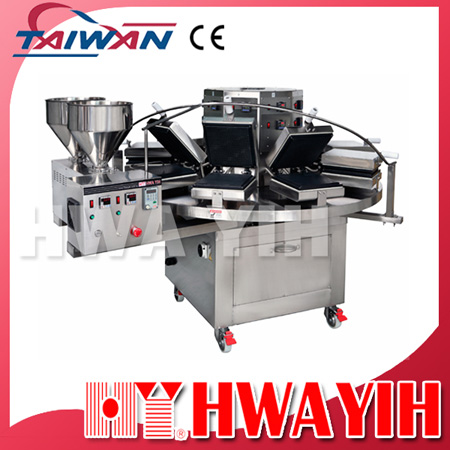

Automatic Continuous Waffle Machine
‧ Size: W1900 x D1680 x H1300mm
‧ Power : 380V/ 18800W/ 3~, 220V/ 13350W/ 3~
‧ Weight :  kgs
‧ Dimension : 265mm x 245mm x 9 sets
HY-910-L Large Automatic Continuous Waffle Machine
‧ Size: W2300 x D2080 x H1300mm
‧ Power : 380V/ 18000W/ 3~, 220V/ 10800W/ 3~
‧ Weight : 650kgs
‧ Baking Plate : 15 sets
‧ Dimension : 265mm x 245mm
‧ Temperature : 0-399℃
‧ Speed : Customize
‧ Capacity of hoper : 13L x 2
Packing: Plastic wrap and Styrofoam and Wooden Crate
Shipment: Within 30 days after receiving 30% down payment.
Payment: Our favor before shipment to T.T. payment.
Minimum order quantity: 1 units.
Transaction: CIF, FOB.
Beneficiary: HWA YIH GIN MACHINE CO., LTD.
NO.42, JONG SHAN E. RD., YEONG KANG CITY, TAINAN SHIEN,TAIWAN, R.O.C

1.Automatic forming system can make the volume of every product the same.
2.Unified adjustable baking speed and excellent thermal conductivity waffle iron produces waffle quickly, evenly and uniformly.
3.Each baking plate is with a separate temperature controller, control the temperature accurately.
4.The whole machine is made by #304 stainless steel, easy to clean and safe.
5.Mold is made by high thermal conductivity of the material, rapid and uniform heating and saving cost.
6.Mold can be customized, you can make your unique product.
7.According to the mold, this automatic continuous Waffle Machine can make American waffles, Liege waffles, Stroopwafel, ice cream cone cookies, tart cookies, cracker, etc…

HY-910

Product	Capacity per hour
American waffles	720 pcs
Liege waffles	720 pcs
Stroopwafel	1620 pcs
ice cream cone cookies	405 pcs
tart cookies	1080 pcs
cracker	1620 pcs

HY-910-L

Product	Max Capacity per hour
waffles(10*10cm)	960 pcs
American waffles(Dia.18cm)	240 pcs
Liege waffles(smaller than 10*10cm)	960 pcs
Stroopwafel	2160 pcs
ice cream cone cookies	540 pcs
tart cookies	1440 pcs
cracker	720 pcs
crepe	720 pcs
