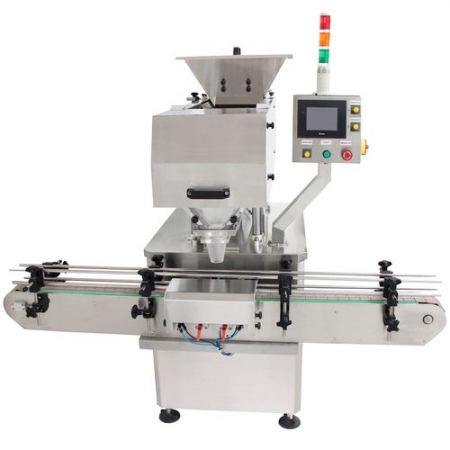

Automatic Six-Channels Tablets/Capsule Counting Machine Model No.: TM-406 Automatic Multi-Channels Tablets/Capsule Counting Machine TM-406 is designed to feed and count any size,shape or quantity of tablet and capsule (hard shell capsules, and soft gelatin capsules are compatible) with high counting accuracy without change parts . The counting of these products and the indexing of the bottle to be filled is controlled by PLC and Human Machine Interface. It's simple to operate and easy to clean.
FEATURES:
1.Variable speed control for 6 tracks.
2. Guarantees high Counting Accuracy.
3.Speed 1800~2000 pcs/min.
4.Touch screen control panel.
5.Advances in vibratory linear feeding suits for any kind of products.
6.Emergency stop and Three -color indicate light.
7.Clean up by vacuuming dust accumulation system.
8.Pre-Counting increases machine outputs
9.Tool-free release for counting different products.
10."Keyence" high accuracy fiber sensor.
11.Air-cylinder index to direct the next batch of containers into filling position.
12.Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement.

OPTIONS:
1.In-Feed and Out-Feed Conveyor
2.Rejection System (Remove Miscounting Bottles)
3.Lid Open and Lid Close system
4.Turnkey linkage with filler, labeler and other in-line systems
5.Product Quantity Level control


SPECIFICATIONS:
1.Counting Speed：1800~2000 pcs/min
2.Power Supply：110 or 220VAC, 50/60Hz
3.Machine Dimensions：(L)1633mm (W)1478mm (H)1713mm
