Paper Napkin Making Machine

Item No.:

AN-34212+AN-84050

Supplier Details

Country: Taiwan

City: New Taipei City 24257

Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.

TEL: +886-2-29085266

Fax: +886-2-29086355

Online Showroom: 51 Products

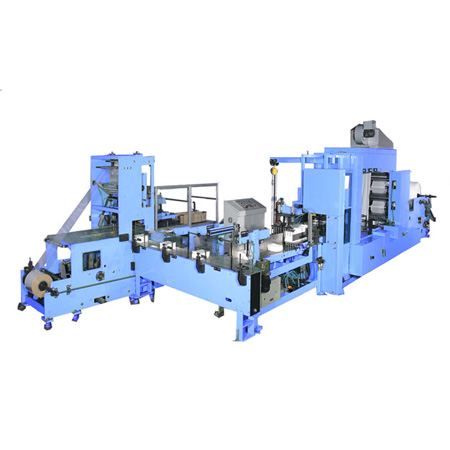

Automatic Production Line For Paper Napkin

Character:

With edge controller.
Ladder type counting device.
Automatic tension controller.
1 set of Vertical Rotary Folder Head.
One set of air lifter for jumbo roll.
Driving belt for jumbo roll ( auto pneumatic control).
Auto slow down device before jumbo roll used-up gradually.
New design for gripping roller and machine body that make advantages of high speed, stability, low noise and long life.
Alignment & conveying device.

Paper Napkin & Facial Tissue Wrapping Machine

Packing size	75~165(L) x 115~330(W) the distance between 2 sides of lateral sealing x 50~140(H)/mm
Wrapping speed	25-50 packs/min.
Film roll diameter	350mm (Max.)
Wrapping material	CPP, PP ( 35~40μm), PE ( 40 μm up)

Character:

To adopt angle orientation controller and encoder for the purpose to ensure the right position of contents.
Touch panel central control to display the machine adjustment, dimensions change and trouble occurrence.
Compressing device together with up/down conveying belt will ensure the good control of wrapping process.
Chain conveyor prior to wrapping machine.
Feeding Conveyor.
