Napkin Making Machine
| Item No.: | AN-34212+AN-84050 |
Supplier Details
Country: Taiwan
City: New Taipei City 24257
Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.
TEL: +886-2-29085266
Fax: +886-2-29086355
Online Showroom:
51 Products

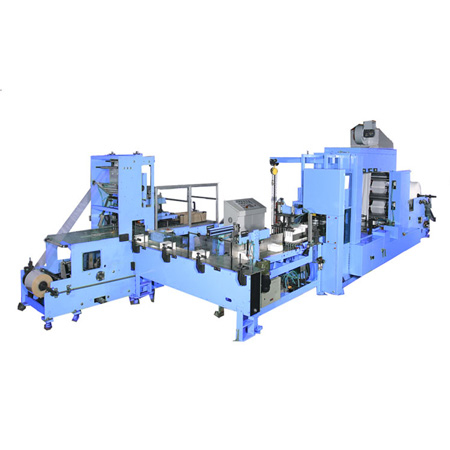

Automatic Production Line For Paper Napkin
Character:
Paper Napkin & Facial Tissue Wrapping Machine
Character:
| Sheet size | 230~430(L) x 230~430(W)/mm |
| Folded size | 115~215(L) x 230~430(W)/mm |
| Speed | 600 - 1200 sheets/min. |
| Jumbo roll width | 230~430/mm |
| Converting web | 1-ply to 3-ply napkin paper |
Character:
- With one unit embossing device: Paper/Steel roller.
- Protector for paper break.
- Band knife auto grinding device (have manual option) match with new type of high speed band saw design.
- It can be also converted into non-woven fabric, air laid paper, gauze, etc. Please advise in advance.
- Could plus 1 to 3 color printer by extra charge.
- Automatic transfer and separating stacks decive.
Paper Napkin & Facial Tissue Wrapping Machine
| Packing size | 75~165(L) x 115~330(W) the distance between 2 sides of lateral sealing x 50~140(H)/mm |
| Wrapping speed | 25-50 packs/min. |
| Film roll diameter | 350mm (Max.) |
| Wrapping material | CPP, PP ( 35~40μm), PE ( 40 μm up) |
Character:
- Automatic film stops when no packing content to avoid wasting.
- With heat sealing device & flap sealing folding plate.
- Film length control & registered mark tracing are achieved by the coordination between photo sensors and electric servo mechanism.
- Conveyor with pusher for paper stacks feeding.
- Wonderful design to gain the lowest waste and the highest yielding rate.
