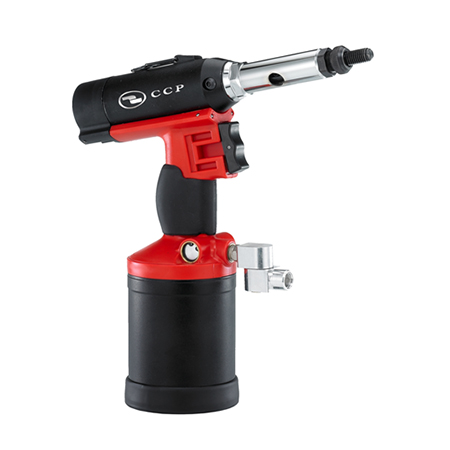

This CCP-30 rivet nut tool have to is over 6000lbs traction power It applies to ship assembly, automobile assembly, aircraft assembly, construction industry, work shop, machine tools, farm equipment and many other varied industries.
This spin-pull rivet nut tool automatically thread the fastener onto the mandrel. Press the trigger and the fastener is installed. Reverse the trigger, the mandrel spins out of the fastener.
Ergonomically designed and lightweight, one-step trigger, reliable operation.
Spin on, pull up, spin off action.
Hydro-pneumatic operation, extra-large Rally 6000 lbs.
Easy to adjust the stroke is tick marks, quick-change connector for tie rod.
Can use the standard 8-32 ~ 1/2-13UNC rivet nut all materials.

Specifications

Country of Origin: Taiwan   Tie-rod sizes: #8, #10, 1/4, 5/16, 3/8, 1/2 inch   Stroke: 7 mm (0.276 inch)   Working Air Pressure: 85 ~ 95 PSI (5.9 – 6.68 kg/cm2)       Pull Force (85 psi): 2724 kg (6000 lbs)   Tool Weight: 2.3 kg   Height: 305 mm   Length of Placing Head: 278.1 mm   Base Diameter: 92.5 mm   Safety/Quality Approvals: ISO9001; CE   Sales Method: Export, Manufacture, OEM/ODM
