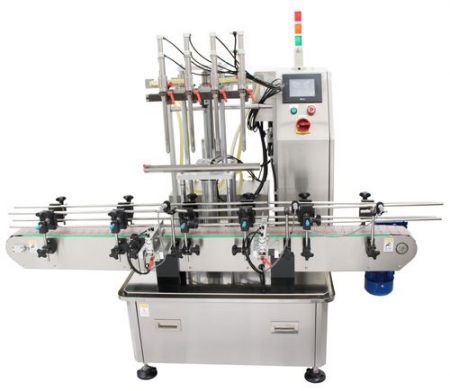

The Automatic Multi-nozzle Engine oil Pump High Speed Machine is designed to fill engine-oil-like liquid, lubricating oil, ...etc. Each nozzle equip with individual pump, making sure the stability. Diving nozzle to avoid foamy effect. Controlled by PLC, operated through HMI, memory set.
FEATURES:

·         ( Gear Pump) (Engine-oil Pump)
·         No bottle no fill
·         High-end servo motor / DC brushless Motors / high efficent filling
·         Diving nozzle to prevent foaming and to eliminate bubble
·         Pushing-out Dripping tray, no spilling
·         Each nozzle equip with individual pump
·         Index system for exactly bottle positioning without bottle jam
·         Pneumatic shut-off nozzle, no leaking concern
·         PLC control and HMI Operation
·         Memory set
·         With emergency button and three-color alarm indicator
·         Made of stainless steel, meets cGMP requirement
OPTIONS:

·         Option for Gear Pump, Engine-Oil Pump and Peristaltic Pump or Piston Pump
·         Bottle in-feed and out-feed accumulation turntable
·         Stainless Steel Cover
·         Turnkey linkage with filler, capper, labeler and other in-line systems
SPECIFICATIONS:

·         Power：single phase 220VAC, 50/60Hz
·         Filling range：50~4000ml
·         Accuracy : +/- 1%
