Tissue Paper Maker Machine

Item No.:

AN-42633E/4L~6L + AN-64320 + AN-83646A

Supplier Details

Country: Taiwan

City: New Taipei City 24257

Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.

TEL: +886-2-29085266

Fax: +886-2-29086355

Online Showroom: 51 Products

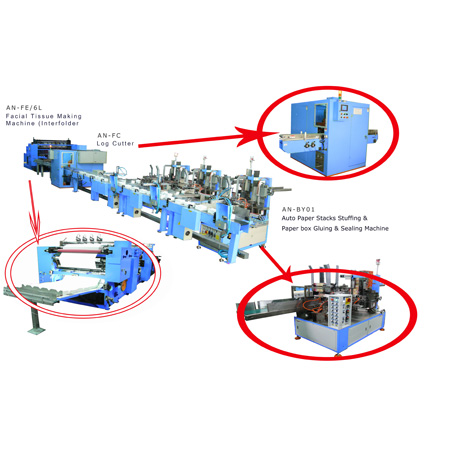

Automatic Facial Tissue Making Machine

Model No.	AN-42633/3L + AN-42633E/3L	AN-42633/4L + AN-42633E/4L	AN-42633/5L + AN-42633E/5L	AN-42633/6L + AN-42633E/6L

Sheet size	210(L) x 180～215(W)/mm The width is adjustable at 5mm progressive changes.

Folded size	105(L) x 180～215(W)/mm
Folding shape	Interfold
Speed (sheet/min.)	2400~3600	3200~4800	4000~5250	4800~6000
	Varied by terms & conditions
Converting web	2-ply facial tissue, 13gsm~14.5gsm x 2 ply.
Jumbo roll width (mm)	540~645	720~860	900~1075	1080~1290
Jumbo roll stand	2 pcs
Jumbo roll dia.	1500mm φMax
Compressed air	Air source 6 kg/cm²

Character:

With one unit of embossing device (only for AN-FE):
Steel Roller x 2 pcs & Rubber Roller x 2 pcs
It to be charged extra if the embossing pattern is special.
With inching.
with protector for paper break.
Slitting Device.
All the cutting knives tools are made of high-speed steel for durability and long service life.

Options:

Steel to steel embosser: Steel Roller x 4 pcs
Also could add Gluing laminination * 1 set
Air blower for trimming rag.

Log Cutter for Hand Towel/Facial Tissue Making Machine

Auto Paper Stacks Stuffing & Paper Box Gluing & Sealing Machine
MODEL: AN-BY01

Box size	(A)200~260(L) x110～120(W) x 45 ~110(H)/mm (approx)
	(B)140~190(L) x110～120(W) x 45 ~110(H)/mm (approx)
Card Board Box material	(A) Box height below 80mm: 350 gsm
	(B) Box height over 80mm: 400 gsm
Box pusher	Extra long pushers are required if box height over 90mm
Adhesive material	Mot Melt Glue
Speed	(A)32-40 boxes/min.
	(B)35-40 boxes/min.
Heater	500W x 6 pcs
Air Consumption	By 3~5 HP air compessor (Excluding in quotation).

Automatic stop when paper box be in jam.
Please contact us if request in different size and specifications.
To fold flap of paper box and guiding box to standby position for sizing.
