Tissue Maker Machine
Item No.: | AN-42633E/4L~6L + AN-64320 + AN-83646A |
Supplier Details
Country: Taiwan
City: New Taipei City 24257
Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.
TEL: +886-2-29085266
Fax: +886-2-29086355

Online Showroom:
51 Products

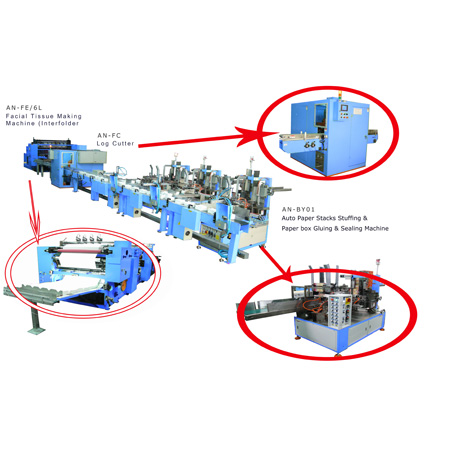

Automatic Facial Tissue Making Machine
Character:
Options:
Log Cutter for Hand Towel/Facial Tissue Making Machine
Auto Paper Stacks Stuffing & Paper Box Gluing & Sealing Machine
MODEL: AN-BY01
Model No. | AN-42633/3L + AN-42633E/3L | AN-42633/4L + AN-42633E/4L | AN-42633/5L + AN-42633E/5L | AN-42633/6L + AN-42633E/6L |
Sheet size | 210(L) x 180~215(W)/mm The width is adjustable at 5mm progressive changes. | |||
Folded size | 105(L) x 180~215(W)/mm | |||
Folding shape | Interfold | |||
Speed (sheet/min.) | 2400~3600 | 3200~4800 | 4000~5250 | 4800~6000 |
Varied by terms & conditions | ||||
Converting web | 2-ply facial tissue, 13gsm~14.5gsm x 2 ply. | |||
Jumbo roll width (mm) | 540~645 | 720~860 | 900~1075 | 1080~1290 |
Jumbo roll stand | 2 pcs | |||
Jumbo roll dia. | 1500mm φMax | |||
Compressed air | Air source 6 kg/cm2 |
Character:
- With one unit of embossing device (only for AN-FE):
Steel Roller x 2 pcs & Rubber Roller x 2 pcs
It to be charged extra if the embossing pattern is special. - With one set of air lifter for jumbo roll.
- Counting is by pneumatic right/left moving.
- The interfolded facial tissue paper is packed in the cardboard box, each drawing on the facial tissue paper will be of Pop-up Type for convenience.
Options:
- Steel to steel embosser: Steel Roller x 4 pcs
Also could add Gluing laminination * 1 set - Trimming knife.
Log Cutter for Hand Towel/Facial Tissue Making Machine
Model No. | AN-FC |
Cutting Speed | 120 cuts/mm ( 200mm) |
Delivery | 1 (lane) |
Cutting knife | 610mm. |
Control | Human Machine Interface |
Conveyor | 2 pcs |
Auto Paper Stacks Stuffing & Paper Box Gluing & Sealing Machine
MODEL: AN-BY01
Box size | (A)200~260(L) x110~120(W) x 45 ~110(H)/mm (approx) | ||||
(B)140~190(L) x110~120(W) x 45 ~110(H)/mm (approx) | |||||
Card Board Box material | (A) Box height below 80mm: 350 gsm | ||||
(B) Box height over 80mm: 400 gsm | |||||
Box pusher | Extra long pushers are required if box height over 90mm | ||||
Adhesive material | Mot Melt Glue | ||||
Speed | (A)32-40 boxes/min. | ||||
(B)35-40 boxes/min. | |||||
Heater | 500W x 6 pcs | ||||
Air Consumption | By 3~5 HP air compessor (Excluding in quotation). |
- Cylinder to push forward Stack of finished boxes.
- Automatic stop when paper box be in jam.
Please contact us if request in different size and specifications.
To fold flap of paper box and guiding box to standby position for sizing.
