Paper Tissue Making Machine

Item No.:

AN-42633E/4L~6L + AN-64320 + AN-83646A

Supplier Details

Country: Taiwan

City: New Taipei City 24257

Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.

TEL: +886-2-29085266

Fax: +886-2-29086355

Online Showroom: 51 Products

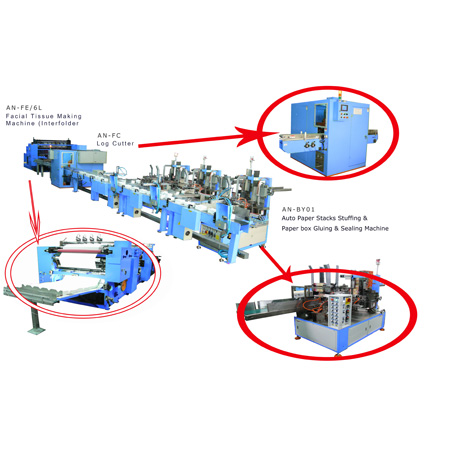

Automatic Facial Tissue Making Machine

Model No.	AN-42633/3L + AN-42633E/3L	AN-42633/4L + AN-42633E/4L	AN-42633/5L + AN-42633E/5L	AN-42633/6L + AN-42633E/6L

Sheet size	210(L) x 180～215(W)/mm The width is adjustable at 5mm progressive changes.

Folded size	105(L) x 180～215(W)/mm
Folding shape	Interfold
Speed (sheet/min.)	2400~3600	3200~4800	4000~5250	4800~6000
	Varied by terms & conditions
Converting web	2-ply facial tissue, 13gsm~14.5gsm x 2 ply.
Jumbo roll width (mm)	540~645	720~860	900~1075	1080~1290
Jumbo roll stand	2 pcs
Jumbo roll dia.	1500mm φMax
Compressed air	Air source 6 kg/cm²

Character:

With one unit of embossing device (only for AN-FE):
Steel Roller x 2 pcs & Rubber Roller x 2 pcs
It to be charged extra if the embossing pattern is special.
Web tension control by manual.
With auto slow down device before jumbo roll used-up gradually.
Air suction folding is adopted.
Cutting tools are changed easily only screws adjustment is required.

Options:

Steel to steel embosser: Steel Roller x 4 pcs
Also could add Gluing laminination * 1 set
Stripping device: Strip equipment & strip embosser.

Log Cutter for Hand Towel/Facial Tissue Making Machine

Auto Paper Stacks Stuffing & Paper Box Gluing & Sealing Machine
MODEL: AN-BY01

Box size	(A)200~260(L) x110～120(W) x 45 ~110(H)/mm (approx)
	(B)140~190(L) x110～120(W) x 45 ~110(H)/mm (approx)
Card Board Box material	(A) Box height below 80mm: 350 gsm
	(B) Box height over 80mm: 400 gsm
Box pusher	Extra long pushers are required if box height over 90mm
Adhesive material	Mot Melt Glue
Speed	(A)32-40 boxes/min.
	(B)35-40 boxes/min.
Heater	500W x 6 pcs
Air Consumption	By 3~5 HP air compessor (Excluding in quotation).

Paper stuffing system
Guiding Trestle Bridge:
To fold flap of paper box and guiding box to standby position for sizing.
