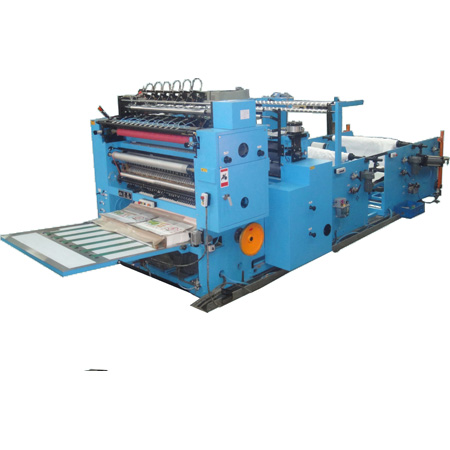

Tissue Paper Converting Machine
| Item No.: | AN-42633/4L~6L + AN-42633E/4L~6L |
Supplier Details
Country: Taiwan
City: New Taipei City 24257
Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.
TEL: +886-2-29085266
Fax: +886-2-29086355
Online Showroom:
51 Products
Automatic Facial Tissue Making Machine
Character:Character:
Options:
| Model No. | AN-42633/3L + AN-42633E/3L | AN-42633/4L + AN-42633E/4L | AN-42633/5L + AN-42633E/5L | AN-42633/6L + AN-42633E/6L |
| Sheet size | 210(L) x 180～215(W)/mm The width is adjustable at 5mm progressive changes. | |||
| Folded size | 105(L) x 180～215(W)/mm | |||
| Folding shape | Interfold | |||
| Speed (sheet/min.) | 2400~3600 | 3200~4800 | 4000~5250 | 4800~6000 |
| Varied by terms & conditions | ||||
| Converting web | 2-ply facial tissue, 13gsm~14.5gsm x 2 ply. | |||
| Jumbo roll width (mm) | 540~645 | 720~860 | 900~1075 | 1080~1290 |
| Jumbo roll stand | 2 pcs | |||
| Jumbo roll dia. | 1500mm φMax | |||
| Jumbo roll core dia. | 76.2mm(=3") | |||
| Compressed air | Air source 6 kg/cm2 | |||
Character:Character:
- One unit of embossing device (only for AN-FE):
Steel Roller x 2 pcs & Rubber Roller x 2 pcs
It to be charged extra if the embossing pattern is special. - 2-5 Lane Delivery.
- One set of air lifter for jumbo roll.
- Counting is by pneumatic right/left moving.
- The interfolded facial tissue paper is packed in the cardboard box, each drawing on the facial tissue paper will be of Pop-up Type for convenience.
Options:
- Steel to steel embosser: Steel Roller x 4 pcs
Also could add Gluing laminination * 1 set - Trimming knife.
- Air blower for trimming rag.
