Circular Foam Cutting Machine
Item No.: | SA-2AC |
Supplier Details
Country: Taiwan
City: Taipei City
Address: 10F., No.200, Sec. 2, Jinshan S. Rd., Da’an Dist.
TEL: +886-2-23956686
Fax: +886-2-23217266
Online Showroom:
48 Products

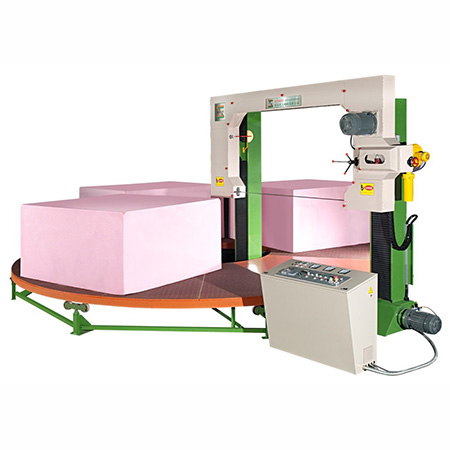

Automatic circular horizontal cutting machine
- For cutting Flexible PU foam block with density under 50kg, rebonded foam with density under 80kg and open celled PVC foam.
- The cutting unit of SA-2AC is fitted with a rotating circular table. The blocks are placed on the rotating table, when cutting the block into sheets it will remain stacked on the table, the whole block can be removed after cutting.
- The rotating speed of the table is adjustable. (Max. Cutting Speed: Approx. 5 rpm)
- Standard table size: Outer diameter 6.4m/6.9m/9m.
- Clearance above/below the blade at 1300 mm.
- Stacking height at 1300mm.
- Adjustable Cutting Angle: 0 - 6 degrees.
- Optional Vacuum table to stabilize the foam while cutting.
- Optional Pressure Roller to hold down the block when cutting thicker sheets or when cutting higher density foam.
- Optional table speed adjustment feature for single block cutting
- Heavy duty version available.
