Hand Towel Machine - AN-43688/2L~4L

Hand Towel Machine

Item No.: AN-43688/2L~4L
Supplier Details
A-NEW Industrial Co. Ltd.
Country: Taiwan
City: New Taipei City 24257
Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.
TEL: +886-2-29085266
Fax: +886-2-29086355
Online Showroom: 51 Products

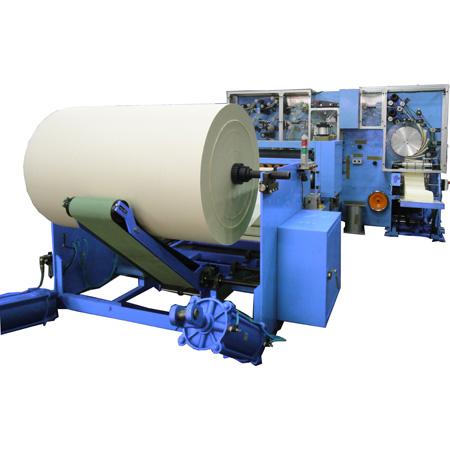

Automatic C-fold Towel Making Machine

Model No.  AN-43688/2L + AN-43688/1C/2L AN-43688/3L + AN-43688/1C/3L AN-43688/4L + AN-43688/1C/4L
Slitting Device 1 unit of slitter 2 unit of slitter 3 unit of slitter
Sheet size  230(L)x228-330(W)/mm
(Cutting Length is adjustable among 180～250mm  , 180～250mm)
Folded shape C-fold, M-fold, N-fold.,or semi-continual interfold.
Folded size 230(L)x80-150(W)/mm   (please choose one size from width range)
Speed (sheets/min.) 1400～2000 2100～3000 2800～4000
Converting web 1-ply hand towel
Jumbo roll width 456～660mm 684～990mm 912～1320mm
Jumbo roll dia. 1500mm φMax.
Jumbo roll core dia. 76.2mm (=3")
Compressed Air Air source 6 kg/cm2

Character:
  1. One unit embossing device: Steel/Steel roller.
  2. 2/3/4-Lane delivery.
  3. Star Wheels in a variable configuration to ensure  a perfect stacking of the product.
  4. Counting device.
  5. The cutting length is changeable.
  6. Folding shape: C-fold, M-fold, Z-fold, N-fold, or semi-continual interfold. Others than one shape is available against extra charge. (Model of 1L without semi-continual interfold).
  7. Driving belt for jumbo roll.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Hand Towel Machine

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
