Automatic Bar Screen-1 - YPZ

Automatic Bar Screen-1

Item No.: YPZ
Supplier Details
XIANGSHENG MACHINERY & ELECTRIC INDUSTRIAL CO., LTD.
Country: Taiwan
City: Tainan City 709
Address: 1F., No. 68, Gongye 1st Rd., Annan Dist.
TEL: +886-06-3843601
Fax: +886-06-3843682
Online Showroom: 32 Products

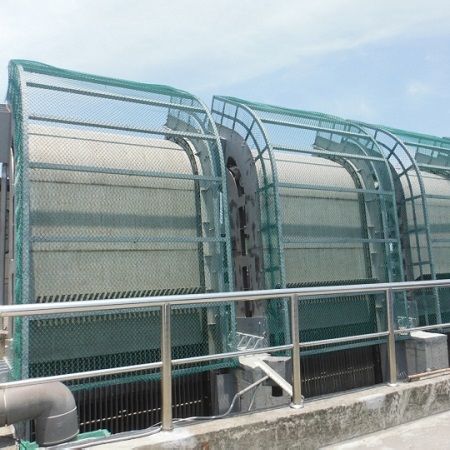

Auto Bar Screen

Scope of application：
  • Suitable for use in sewage treatment plants, flood control pumping stations, potable water treatment plants, power plant water inlets, industrial water systems, etc. Automatic interception and removal of floating debris from the water.
Driving mode：
  1. Electric motor direct transmission
  2. Electric motor transmission and shaft transmission
  3. Gear shift transmission
Working principles：
  • A harrow tooth is made from stainless steel, which is installed on the chain according to a certain order to form a closed tooth chain. The lower part is installed on the water inlet channel. When the drive system enables the sprocket to rotate in a fixed speed and direction, the whole tooth chain will move from top to bottom, and carry solid materials separate from the liquid. The fluid flows out through the tooth gap and dirt is transfered to the conveyor belt and the collecting car with harrow tooth.
Material：SUS ,etc.
Made in Taiwan.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Automatic Bar Screen-1

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
