Box Sealing Machine - AN-83646A

Box Sealing Machine

Item No.: AN-83646A
Supplier Details
Country: Taiwan
City: New Taipei City 24257
Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.
TEL: +886-2-29085266
Fax: +886-2-29086355
Online Showroom: 51 Products

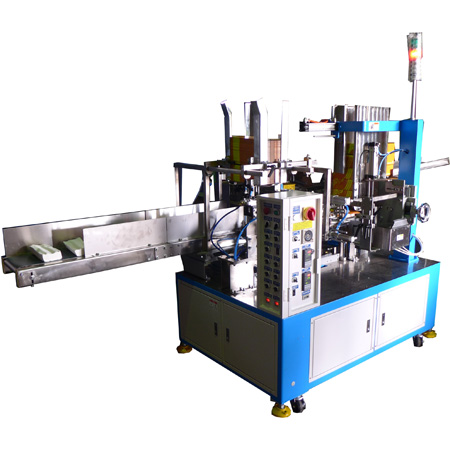

Auto Paper Stacks Stuffing & Paper Box Gluing & Sealing Machine

Box size (A) 200~260(L) x110~120(W) x 45 ~110(H)/mm (approx)
(B) 140~190(L) x110~120(W) x 45 ~110(H)/mm (approx)
Card Board Box material (A) Box height below 80mm: 350 gsm
(B) Box height over 80mm: 400 gsm
Adhesive material Mot Melt Glue
Box pusher Extra long pushers are required if box height over 90mm
Speed (A)32-40 boxes/min.
(B)35-40 boxes/min.
Heater 500W x 6 pcs
Air Consumption By  3~5 HP air compessor (Excluding in quotation). 5 HP

  1. Paper stuffing system
  2. Guiding Trestle Bridge:
    To fold flap of paper box and guiding box to  standby position for sizing.
  3. Box Standby Supporter.
  4. Gluing & Sealing Device.
  5. Cylinder to push forward Stack of finished boxes.
  6. Automatic stop when paper box be in jam.
    Please contact us if request in different size and specifications.
    To fold flap of paper box and guiding box to standby position for sizing.
