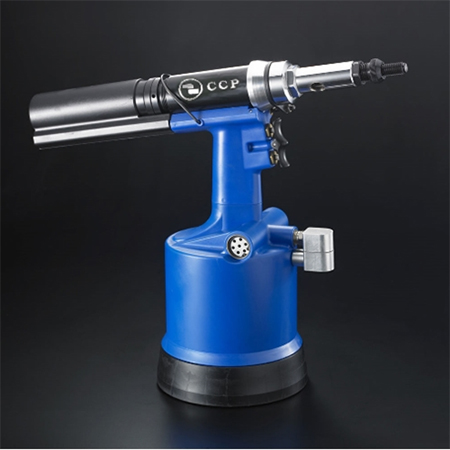

This CCP-60 rivet nut tool is over 6000 lbs traction power and 16.5 mm long stroke. It applies to ships assembled repair, heavy construction, railway construction, heavy machine tools and many applications.
Biggest stroke 16.5 mm (0.65 inch).
The greatly improving on inner coating of hydraulic cylinders make new series extremely long lasting.
Patented structure design of valve brings a rapid movement of in-line piston. Spin-on, pull-up, spinout action air hydraulic operation.
360° air Inlet which is good for working under all conditions of operation.
Heavy duty plastic body, metal base meets demands of tough work environments.
Can use the standard 8-32 ~ 1/2-13UNC rivet nut all materials.

Specifications

Country of Origin: Taiwan   Tie-rod sizes: #8, #10, 1/4, 5/16, 3/8, 1/2 inch   Stroke: 16.5 mm (0.65 inch)   Working Air Pressure: 90 ~ 95 PSI (6.33 – 6.68 kg/cm2)       Pull Force (90 psi): 2722 kg (6000 lbs)   Tool Weight: 3.77 kg   Height: 337 mm   Length of Placing Head: 415 mm   Base Diameter: 154.5 mm   Safety/Quality Approvals: ISO9001; CE   Sales Method: Export, Manufacture, OEM/ODM
