Pneumatic Rivet Nut Tool
| Item No.: | CCP-30M |
Supplier Details
Country: Taiwan
City: New Taipei City 221
Address: No.159, Sec. 2, Datong Rd., Xizhi Dist.
TEL: +886-2-86926800
Fax: +886-2-86926804
Online Showroom:
39 Products

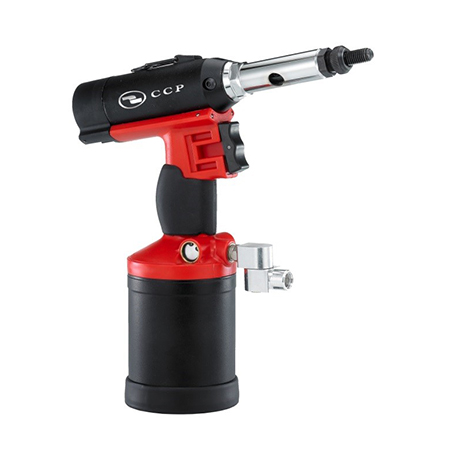

This CCP-30 Pneumatic Hydraulic rivet nut tool is over 6000lbs traction power. Its capacity M3 - M8 in all is size nuts materials applies to ship assembly, automobile assembly, aircraft assembly, construction industry, work shop, machine tools, farm equipment and many other varied industries.
Touch trigger the fastener quickly spins on, pulls the fastener nut, and with the release button, spins out of the fastener to avoid damage to the nut tooth pattern.
Lightweight and durable design, tool handles and the bottom rubber pad to reduce vibration.
Can use the standard M4 ~ M12 rivet nut all materials.
Touch trigger the fastener quickly spins on, pulls the fastener nut, and with the release button, spins out of the fastener to avoid damage to the nut tooth pattern.
Lightweight and durable design, tool handles and the bottom rubber pad to reduce vibration.
Can use the standard M4 ~ M12 rivet nut all materials.
| Specifications | Country of Origin: Taiwan Tie-rod sizes: M4, M5, M6, M8, M10, M12 Stroke: 7 mm (0.276 inch) Working Air Pressure: 85 ~ 95 PSI (5.9 – 6.68 kg/cm2) Pull Force (85 psi): 2724 kg (6000 lbs) Tool Weight: 2.3 kg Height: 305 mm Length of Placing Head: 278.1 mm Base Diameter: 92.5 mm Safety/Quality Approvals: ISO9001; CE Sales Method: Export, Manufacture, OEM/ODM |
