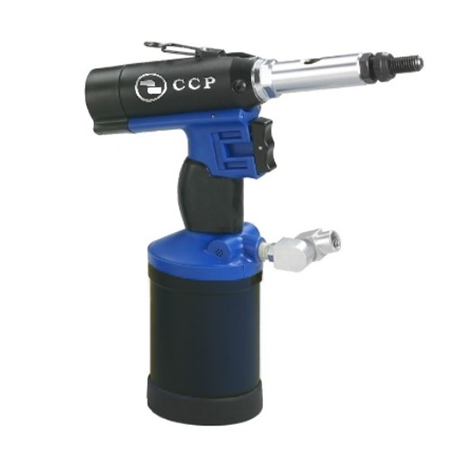

Blind Rivet Nut Tool
| Item No.: | CCP-25AM |
Supplier Details
Country: Taiwan
City: New Taipei City 221
Address: No.159, Sec. 2, Datong Rd., Xizhi Dist.
TEL: +886-2-86926800
Fax: +886-2-86926804
Online Showroom:
39 Products
This CCP-25AM Pneumatic Hydraulic rivet nut tool features dual mode operation are suited to the Capacity M3 - M12 in all is size nuts materials. It applies to automobile assembly, boat repair, construction industry, work shop, machine tools, farm equipment electronics and many other varied industries.
Compact tool with spin/pull technology.
Manual Adjustable Stroke.
Single trigger action for setting and spin off.
The greatly improving on inner coating of hydraulic cylinders make new series extremely long lasting
Can use the standard M3 ~ M12 rivet nut all materials.
Compact tool with spin/pull technology.
Manual Adjustable Stroke.
Single trigger action for setting and spin off.
The greatly improving on inner coating of hydraulic cylinders make new series extremely long lasting
Can use the standard M3 ~ M12 rivet nut all materials.
| Specifications | Country of Origin: Taiwan Tie-rod sizes: M3, M4, M5, M6, M8, M10, M12 Stroke: 7 mm (0.276 inch) Working Air Pressure: 85 ~ 95 PSI (5.9 – 6.68 kg/cm2) Pull Force (85 psi): 2176 kg (4800 lbs) Tool Weight: 2.4 kg Height: 317 mm Length of Placing Head: 278 mm Base Diameter: 88.6 mm Safety/Quality Approvals: ISO9001; CE Sales Method: Export, Manufacture, OEM/ODM |
