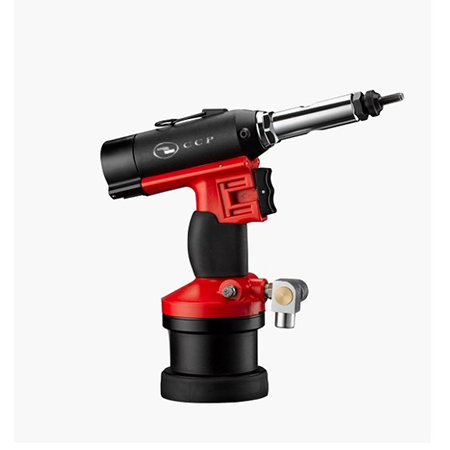

Rivet Tool Kit
| Item No.: | CCP-20M |
Supplier Details
Country: Taiwan
City: New Taipei City 221
Address: No.159, Sec. 2, Datong Rd., Xizhi Dist.
TEL: +886-2-86926800
Fax: +886-2-86926804
Online Showroom:
39 Products
The light weight CCP-20M rivet nut tools are suited to the Capacity M3 - M8 in all to the small size nuts materials, and long-time assembly work. It applies to automotive, construction, white goods, electronics and many other varied industries.
Very rapid rotation traction system to ensure the consistency of each installation.
Tools special surface treatment to extend tool life.
Compact lightweight tool with spin/pull technology.
Single trigger action for setting and spin off.
Air-hydraulic operation.
Manual Adjustable Stroke.
Quick-change connector for tie rod.
Can use the standard M3 ~ M8 rivet nut all materials.
Very rapid rotation traction system to ensure the consistency of each installation.
Tools special surface treatment to extend tool life.
Compact lightweight tool with spin/pull technology.
Single trigger action for setting and spin off.
Air-hydraulic operation.
Manual Adjustable Stroke.
Quick-change connector for tie rod.
Can use the standard M3 ~ M8 rivet nut all materials.
| Specifications | Country of Origin: Taiwan Tie-rod sizes: M3, M4, M5, M6, M8 Stroke: 7 mm (0.276 inch) Working Air Pressure: 85 ~ 95 PSI (5.9 ~ 6.68 kg/cm2) Pull Force (85 psi): 1452 kg (3200 lbs) Tool Weight: 2.1 kg Height: 266.5 mm Length of Placing Head: 278.1 mm Base Diameter: 92.5 mm Safety/Quality Approvals: ISO9001; CE Sales Method: Export, Manufacture, OEM/ODM |
