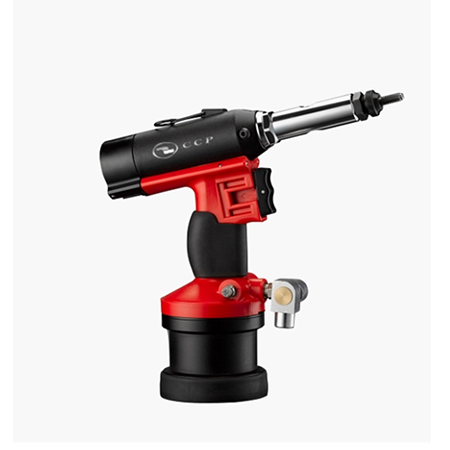

Rivet Nut Gun
| Item No.: | CCP-20U |
Supplier Details
Country: Taiwan
City: New Taipei City 221
Address: No.159, Sec. 2, Datong Rd., Xizhi Dist.
TEL: +886-2-86926800
Fax: +886-2-86926804
Online Showroom:
39 Products
High-quality, tough and light weight CCP-20U rivet nut tools are suited to the small size of the fastener nuts, and long assembly work. It applies to automotive, construction, white goods, electronics and many other varied industries.
This rivet nut tool features a SPIN-PULL setting sequence.
Part hardened increased tool life.
The rivet nut tool has Stroke length adjustment simple operation using the pointer.
Manual Adjustable Stroke, quick-change connector for tie rod.
Can use the standard 6-32 ~ 5/16-18UNC rivet nut all materials.
This rivet nut tool features a SPIN-PULL setting sequence.
Part hardened increased tool life.
The rivet nut tool has Stroke length adjustment simple operation using the pointer.
Manual Adjustable Stroke, quick-change connector for tie rod.
Can use the standard 6-32 ~ 5/16-18UNC rivet nut all materials.
| Specifications | Country of Origin: Taiwan Tie-rod sizes: #6, #8, #10, 1/4, 5/16 inch Stroke: 7 mm (0.276 inch) Working Air Pressure: 85 ~ 95 PSI (5.9 – 6.68 kg/cm2) Pull Force (85 psi): 1452 kg (3200 lbs) Tool Weight: 2.1 kg Height: 266.5 mm Length of Placing Head: 278.1 mm Base Diameter: 92.5 mm Safety/Quality Approvals: ISO9001; CE Sales Method: Export, Manufacture, OEM/ODM |
