Unions Fittings
| Item No.: | XX-62, XX-64,XX-65 |
Supplier Details
Country: Taiwan
City: Tainan City 711
Address: 1F., No. 86, Xinyi N. Rd., Guiren Dist.
TEL: +886-6-2309018
Fax: +--
Online Showroom:
68 Products

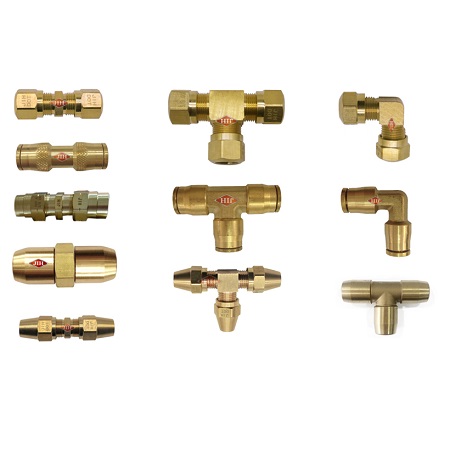

Unions for Air Brake Brass Fittings
Brass unions for air brake fittings are key components in vehicle air brake systems, providing secure connections between sections of tubing. These fittings can be straight unions, union elbows, or union tees, each serving different purposes within the system.
To introduce these fittings, consider the following steps:
Materials Needed:
Procedure:
Brass unions for air brake fittings are key components in vehicle air brake systems, providing secure connections between sections of tubing. These fittings can be straight unions, union elbows, or union tees, each serving different purposes within the system.
To introduce these fittings, consider the following steps:
Materials Needed:
- Air brake brass unions (straight unions, union elbows, union tees)
- Nylon or Polyamide tubing
- Tubing cutter
- Appropriate wrenches
Procedure:
- Verification of Components: Begin by ensuring all parts are free of defects, clean, and conform to the standards for your air brake system.
- Tube Preparation: Use the tubing cutter to cut the tubing to the required length, ensuring the cut is straight and clean. This is essential for a secure connection.
- Introducing Straight Unions: For straight unions, insert the cut ends of the tubing into each end of the union, pushing firmly to ensure a secure fit. Then tighten the nut on the fitting using a wrench.
- Introducing Union Elbows: If your system needs a change in direction, you will need to use a union elbow. To introduce the union elbow, insert the cut ends of the tubing into the ends of the elbow fitting. Adjust the fitting to match the desired angle before tightening the nuts.
- Introducing Union Tees: When you need to split the flow of air, use a union tee. Insert the tubing into the three ends of the tee, making sure each section of tubing is firmly inserted. Then tighten each nut using your wrench.
- Finalizing Installation: After all unions have been introduced and tightened, perform a pressure test on the system. Check for leaks at each connection point. If a leak is detected, slightly tighten the affected union.
