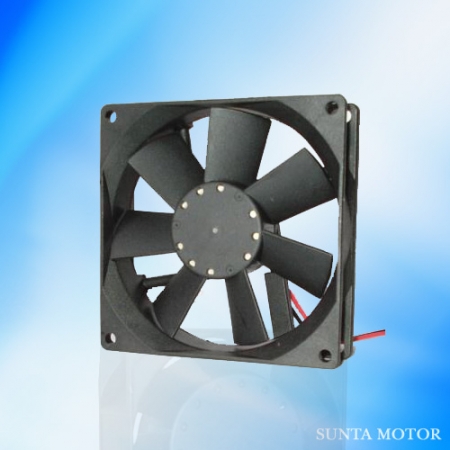

MODEL NO. 9225AD-*SERIES


Size: 92*92*25mm.
Motor: Brushless DC Motor
Motor protected: 1,Polarity + impendence. ( ZP )

Frame(Houseing): PBT + 30% fiber glass black color UL94-0
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 min at 800 VAC.50/60 HZ between lead wire (+) and frame.
Bearing type: B: 2 ball bearing.  Sleeve bearing                    S: one Sleeve bearing Operating Temp: Ball bearing:  within-20~80 degree C
                    Sleeve bearing:  within-10~56 degree C
 Sleeve bearing:  within -10~56 degree C
Life expectancy: Ball bearing:  50,000 hours at 60 degree C.
                   Sleeve bearing:   20,000 hours at 45 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals:
Net weight :
CONNECTOR: L: lead wire

MODEL NO. RATED RATED  RATED VOLTAGE  MAX. AIR MAX.AIR  NOISE AMP  RPM RATED  FLOW PRESSURE VAC W RPM VAC  CMM CFM MM/AQ INCH/AQ DBA 9225AD-HBPL 115~230 14~18 2800 100~240 1.13 40 5.8 0.23 33 9225AD-HSPL
