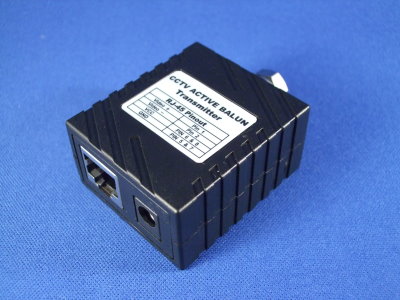

Active Transmitter Balun "F"-Male Type - 03-A210-01

Active Transmitter Balun "F"-Male Type

Item No.: 03-A210-01
Supplier Details
LANTAC TECHTRONICS CO., LTD.
Country: Taiwan
City: NEW TAIPEI CITY 251
Address: 1FL., NO.69-6, SEC.2, CHUNG CHENG E. RD., DANSHUI DIST., NEW TAIPEI CITY 251, TAIWAN (R.O.C.)
TEL: +886-2-28091533
Fax: +886-2-28091306
Online Showroom: 81 Products
Specification： ‧Bandwidth：DC to 8MHz ‧Impedance：BNC Male to One RJ45 ‧Connectors：One BNC Male to One RJ45  ‧Normal Level：1.0 volts ‧Insertion Loss：≤ 1dB ‧Common Mode Rejection：60dB type , at DC to 8MHz ‧Cable-UTP：UTP：24 AWG or lower solid copper                             UTP：Impedance：100 ohms at 1MHz                             Max.Capacitance：20 pf/ft                             Attenuation：6.6dB /1000ft at 1MHz ‧Max.Distatance：UP to 4900 ft (0m to 1500m) with Active Receiver ‧Temperature：Operating：0° to 55° C                                 Storage：-20° to 85° C ‧Power Required：12V DC @ 60mA
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Active Transmitter Balun "F"-Male Type

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
