Active Transmitter Balun BNC-Male Type - 03-A210-00

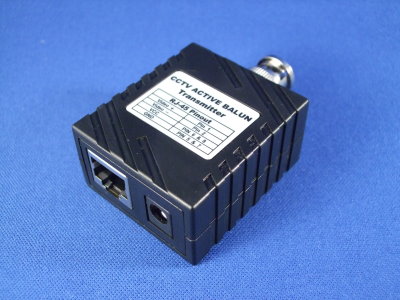

Active Transmitter Balun BNC-Male Type

Item No.: 03-A210-00
Supplier Details
LANTAC TECHTRONICS CO., LTD.
Country: Taiwan
City: NEW TAIPEI CITY 251
Address: 1FL., NO.69-6, SEC.2, CHUNG CHENG E. RD., DANSHUI DIST., NEW TAIPEI CITY 251, TAIWAN (R.O.C.)
TEL: +886-2-28091533
Fax: +886-2-28091306
Online Showroom: 81 Products
SPECIFICATION： ‧Bandwidth：DC to 8MHz ‧Impedance：BNC Male 75 ohms ,RJ-45 100ohm ‧Connectors：One BNC Male to One RJ45 ‧Nominal Level：1.0 Volts ‧Insertion Loss：≤1dB ‧Common Mode Rejection：60dB type, at DC to 8MHz ‧Cable-UTP：UTP：24 AWG or lower solid copper                             UTP：Impedance：100 ohms at 1MHz                             Max.Capacitance：20 pf/ft                             Attenuation：6.6dB/1000 ft at 1Mhz ‧Max.Distatance：Up to 4900 ft (0m to 1500M) with Active Receiver ‧Temperature：Operating：0° to 55°C                                 Storage：-20° to 85°C ‧Power Required：12V DC @60mA
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Active Transmitter Balun BNC-Male Type

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
