Active Receiver Balun "F"-Male Type - 03-A211-01

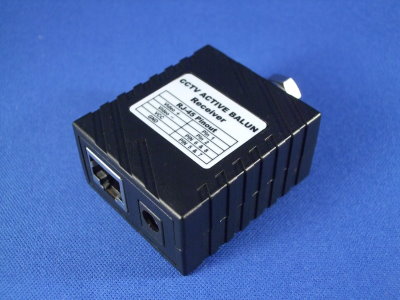

Active Receiver Balun "F"-Male Type

Item No.: 03-A211-01
Supplier Details
LANTAC TECHTRONICS CO., LTD.
Country: Taiwan
City: NEW TAIPEI CITY 251
Address: 1FL., NO.69-6, SEC.2, CHUNG CHENG E. RD., DANSHUI DIST., NEW TAIPEI CITY 251, TAIWAN (R.O.C.)
TEL: +886-2-28091533
Fax: +886-2-28091306
Online Showroom: 81 Products
Specification： ‧Bandwidth：DC to 8MHz ‧Impedance：F Male 75 ohms , RJ-45  100 ohm ‧Connectors：One F Male to One RJ45 ‧Nominal Lecel：1.0 volts  ‧Insertion Loss：≤1dB ‧Common Mode Rejection：60dB type , at DC to 8MHz ‧Cable-UTP：UTP：24 AWG or lower solid copper                             UTP：Impedance：100 ohms at 1MHz                             Max.Capactiance：20 pf/ft                             Attenuation：6.6dB/1000 ft at 1MHz  ‧Max.Distatance：Up to 3000 ft (0M to 914M) with Passive Balun                                     Up to 4900 ft (0m to 1500m) with Active Transmitter ‧Temperature：Operating：0° to 55° C                                 Storage：-20° to 85°C ‧Power Required：12VDC @ 80mA
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Active Receiver Balun "F"-Male Type

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
