Active Receiver Balun BNC-Male Type - 03-A211-00

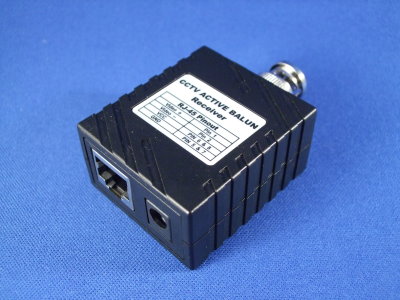

Active Receiver Balun BNC-Male Type

Item No.: 03-A211-00
Supplier Details
LANTAC TECHTRONICS CO., LTD.
Country: Taiwan
City: NEW TAIPEI CITY 251
Address: 1FL., NO.69-6, SEC.2, CHUNG CHENG E. RD., DANSHUI DIST., NEW TAIPEI CITY 251, TAIWAN (R.O.C.)
TEL: +886-2-28091533
Fax: +886-2-28091306
Online Showroom: 81 Products
SPECIFICATION： ‧Bandwidth：DC to 8MHz ‧Impedance：BNC Male 75 ohms ,RJ-45 100 ohm ‧Connectors：One BNC Male to One RJ45 ‧Norminal Level：1.0 volts ‧Insertion Loss：≤1dB ‧Common Mode Rejection：60dB type, at DC to 8MHz ‧Cable-UTP：UTP：24AWG or lower solid copper                             UTP：Impedance：100 ohms at 1MHz                             Max.Capacitance：20 pf/ft                             Attenuation：6.6dB/1000ft at 1MHz  ‧Max.Distatance：Up to 3000 ft (0m to 914M) with Passive Balun                                      Up to 4900 ft(0m to 1500m) with Active Transmitter ‧Temperature：Operating：0° to 55° C                                 Storage：-20° to 85°C ‧Power Reuuired：12V DC @80mA
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Active Receiver Balun BNC-Male Type

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
