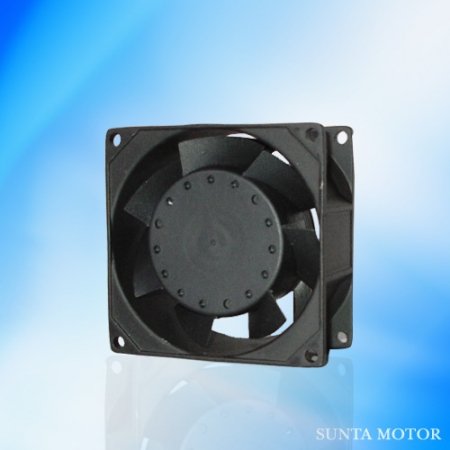

AC FAN 8038
| Item No.: | AC FAN 8038 |
Supplier Details
Country: Taiwan
State: Taiwan
City: pingtung
Address: No.95, Sinyi St., Jiouru Township
TEL: +886-8-7390684
Fax: +886-8-7390266
Online Showroom:
11 Products
MODEL NO. 8038A*-* SERIES
Size: 80*80*38mm. (3.15*3.15*2.815 inch.)
Motor: Shaded pole, impendance protected.
Frame(Houseing): Aluminum die-cast. AP: Painted black.
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.100M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 sec at 1500 VAC.50/60 HZ.
Bearing type: B: 2 ball bearing. S: 1 Sleeve bearing Operating Temp: Ball bearing: within-20~80 degree C
Sleeve bearing: within -10~56 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Sleeve bearing: 20,000 hours at 45 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
Net weight : 290 grams (0.82 pounds)
MODEL NO. RATED VOLTAGE FREQ RATED RATED MAX. AIR MAX.AIR NOISE REANGE AMP RPM FLOW PRESSURE VAC VAC HZ A RPM CMM CFM MM/H20 INCH/H20 DBA 8038A1-HSAPL 115 80-120 50 / 60 0.14 / 0.12 2600 / 3000 0.79 / 1.00 26 / 31 4.3 / 4.6 0.17 / 0.18 29 8038A1-HBAPL 8038A2-HSAPL 230 160-260 50 / 60 0.07 / 0.06 2600 / 3000 0.79 / 1.00 26 / 31 4.3 / 4.6 0.17 / 0.18 29 8038A2-HBAPL
Size: 80*80*38mm. (3.15*3.15*2.815 inch.)
Motor: Shaded pole, impendance protected.
Frame(Houseing): Aluminum die-cast. AP: Painted black.
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.100M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 sec at 1500 VAC.50/60 HZ.
Bearing type: B: 2 ball bearing. S: 1 Sleeve bearing Operating Temp: Ball bearing: within-20~80 degree C
Sleeve bearing: within -10~56 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Sleeve bearing: 20,000 hours at 45 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
Net weight : 290 grams (0.82 pounds)
MODEL NO. RATED VOLTAGE FREQ RATED RATED MAX. AIR MAX.AIR NOISE REANGE AMP RPM FLOW PRESSURE VAC VAC HZ A RPM CMM CFM MM/H20 INCH/H20 DBA 8038A1-HSAPL 115 80-120 50 / 60 0.14 / 0.12 2600 / 3000 0.79 / 1.00 26 / 31 4.3 / 4.6 0.17 / 0.18 29 8038A1-HBAPL 8038A2-HSAPL 230 160-260 50 / 60 0.07 / 0.06 2600 / 3000 0.79 / 1.00 26 / 31 4.3 / 4.6 0.17 / 0.18 29 8038A2-HBAPL
