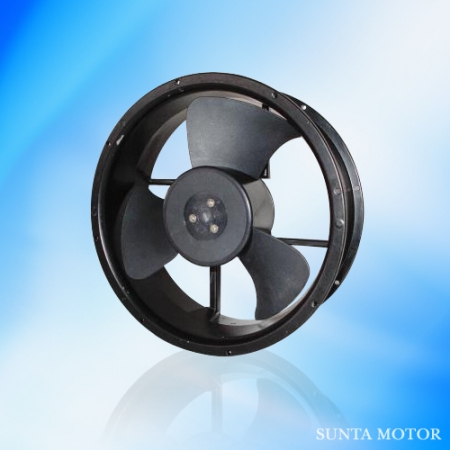

AC FAN 25489
| Item No.: | AC FAN 25489 |
Supplier Details
Country: Taiwan
State: Taiwan
City: pingtung
Address: No.95, Sinyi St., Jiouru Township
TEL: +886-8-7390684
Fax: +886-8-7390266
Online Showroom:
11 Products
MODEL NO. 25489A*-* SERIES
Size: 254*89mm. (10.0*3.50 inch.)
Motor: capacitor induction motor, temperature protected.
Frame(Houseing): Aluminum die-cast. AP: Painted black.
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1015#20AWG. UL/CSA.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 sec at 1500 VAC.50/60 HZ.
Bearing type: B: 2 ball bearing.
Operating Temp: Ball bearing: within-20~80 degree C
Sleeve bearing: within -10~56 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
Net weight : 2000 grams
CONNECTOR: T: terminal L: lead wire
MODEL NO. RATED VOLTAGE FREQ RATED RATED MAX. AIR MAX.AIR NOISE REANGE AMP RPM FLOW PRESSURE VAC VAC HZ A RPM CMM CFM MM/H20 INCH/H20 DBA 25489A1-HBAPL OR T 115 80-120 50 / 60 0.52 / 0.58 2150 / 2000 24.5 / 22.8 867 / 806 11.7 / 9.4 0.46 / 0.37 56 25489A1-MBAPL OR T 115 80-120 50 / 60 0.30 / 0.32 1400 / 1600 17.0 / 18.8 600 / 665 6.9 / 9.1 0.27 / 0.36 51 25489A2-HBAPL OR T 230 160-240 50 / 60 0.26 / 0.29 2300 / 2200 25.9 / 25.1 915 / 886 12.4 / 10.4 0.49 / 0.41 56 25489A2-MBAPL OR T 230 160-240 50 / 60 0.15 / 0.16 1400 / 1600 17.0 / 18.8 600 / 665 6.9 / 9.1 0.27 / 0.36 51
Size: 254*89mm. (10.0*3.50 inch.)
Motor: capacitor induction motor, temperature protected.
Frame(Houseing): Aluminum die-cast. AP: Painted black.
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1015#20AWG. UL/CSA.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 sec at 1500 VAC.50/60 HZ.
Bearing type: B: 2 ball bearing.
Operating Temp: Ball bearing: within-20~80 degree C
Sleeve bearing: within -10~56 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
Net weight : 2000 grams
CONNECTOR: T: terminal L: lead wire
MODEL NO. RATED VOLTAGE FREQ RATED RATED MAX. AIR MAX.AIR NOISE REANGE AMP RPM FLOW PRESSURE VAC VAC HZ A RPM CMM CFM MM/H20 INCH/H20 DBA 25489A1-HBAPL OR T 115 80-120 50 / 60 0.52 / 0.58 2150 / 2000 24.5 / 22.8 867 / 806 11.7 / 9.4 0.46 / 0.37 56 25489A1-MBAPL OR T 115 80-120 50 / 60 0.30 / 0.32 1400 / 1600 17.0 / 18.8 600 / 665 6.9 / 9.1 0.27 / 0.36 51 25489A2-HBAPL OR T 230 160-240 50 / 60 0.26 / 0.29 2300 / 2200 25.9 / 25.1 915 / 886 12.4 / 10.4 0.49 / 0.41 56 25489A2-MBAPL OR T 230 160-240 50 / 60 0.15 / 0.16 1400 / 1600 17.0 / 18.8 600 / 665 6.9 / 9.1 0.27 / 0.36 51
