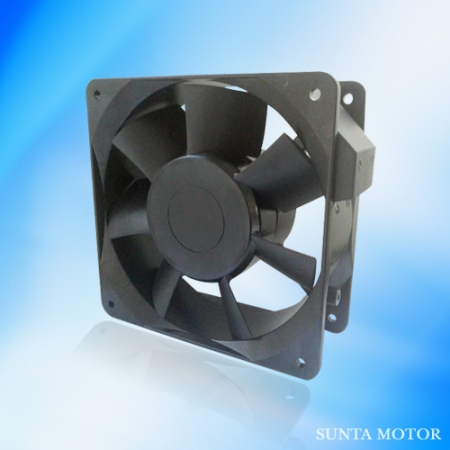

MODEL NO. 16062A*-* SERIES

Size: 160*160*62mm.
Motor: capacitor induction motor, temperature protected.
Frame(Houseing): Aluminum die-cast. AP: Painted black.
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 sec at 1500 VAC.50/60 HZ.
Bearing type: B: 2 ball bearing.
Operating Temp: Ball bearing:  within-20~80 degree C
 Sleeve bearing:  within -10~56 degree C
Life expectancy: Ball bearing:  50,000 hours at 60 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals:  CE
Net weight : 1400 grams
CONNECTOR:  T: terminal    L: lead wire
MODEL NO. RATED VOLTAGE  FREQ RATED  RATED MAX. AIR MAX.AIR  NOISE REANGE AMP  RPM  FLOW PRESSURE VAC VAC HZ A RPM  CMM CFM MM/H20 INCH/H20 DBA 16068A1-HBAPL 115 80-120 50 / 60 0.49 / 0.49 2800 / 3200 8.9 / 10 320 / 360 18.4/22.5 0.72/0.89 64 16068A2-HBAPL 230 160-240 50 / 60 0.25 / 0.25 2800 / 3200 8.9 / 10 320 / 360 18.4/22.5 0.72/0.89 64
