Optic Receiver
| Item No.: | A8KQRR/DRR |
Supplier Details
Country: Taiwan
City: New Taipei City 248
Address: No.41, Wu Kung 6th Rd., Wu Kung Dist.
TEL: +886-2-22990666
Fax: +886-2-22990667
Online Showroom:
86 Products
Overview

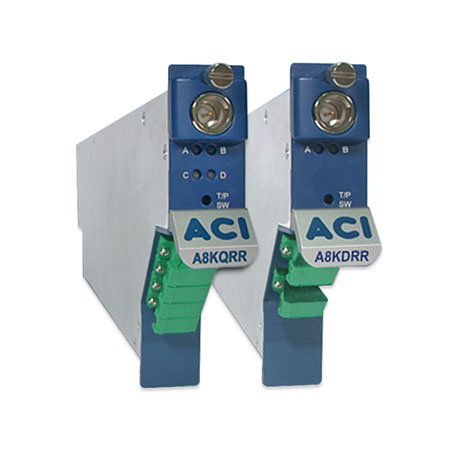

A8KQRR and A8KDRR – Quad/Dual Return Receiver is an integral part of return path system applications. 3RU in height and up to 12 modules can reside in the 19-inch high-density chassis (A8KMF3).
Features
1U 19“ rack housing
Wide optical input range
4 Return optical inputs and 4 Return RF outputs (A8KQRR)
2 Return optical inputs and 2 Return RF outputs (A8KDRR)
Maximum of 48 returns for Quad receiver modules or 24 returns for Dual receiver modules per chassis
Wide optical input range
Front optical inputs and rear RF outputs
Optical wavelength: 1200 to 1600 nm
Hot-swappable
Remote monitor and control function by HMS or SNMP
Stand alone receivers with no redundancy or with A/B switch for redundant receivers(optional)
A8KQRR and A8KDRR – Quad/Dual Return Receiver is an integral part of return path system applications. 3RU in height and up to 12 modules can reside in the 19-inch high-density chassis (A8KMF3).
Features
1U 19“ rack housing
Wide optical input range
4 Return optical inputs and 4 Return RF outputs (A8KQRR)
2 Return optical inputs and 2 Return RF outputs (A8KDRR)
Maximum of 48 returns for Quad receiver modules or 24 returns for Dual receiver modules per chassis
Wide optical input range
Front optical inputs and rear RF outputs
Optical wavelength: 1200 to 1600 nm
Hot-swappable
Remote monitor and control function by HMS or SNMP
Stand alone receivers with no redundancy or with A/B switch for redundant receivers(optional)
