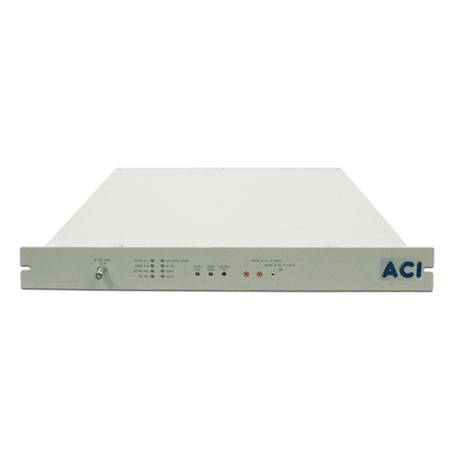

Forward Receiver
| Item No.: | A8KFR1 |
Supplier Details
Country: Taiwan
City: New Taipei City 248
Address: No.41, Wu Kung 6th Rd., Wu Kung Dist.
TEL: +886-2-22990666
Fax: +886-2-22990667
Online Showroom:
86 Products
Overview
The A8KFR1 is an advanced Forward Optical Receiver designed for HFC network to convert the optical signal to RF signal for distribution, with high reliability, scalability, and cost-effectiveness. The A8KFR1 has wide range of operation bandwidth from 45 MHz to 770 MHz or 1 GHz and input optical power range from -5 dBm to 1 dBm.
The power supply module can operate with redundancy when two power supplies are installed. Also, the optical receiver module can operate with redundancy when two optical receivers are installed. For the network management, the A8KFR1 supports the remote management by SNMP.
Features
Operation bandwidth 45 to 770 MHz or 1 GHz
Supports 80 digital channels/10 analog channels or 110 analog channels loading performance
-5 dBm to +1 dBm received input power range
Located on the rear panel: rear mount RF ports, optical ports and alarm circuitry
Located on the front panel: test-point, gain control, slope control, and LED for easy setup
Occupies only 1RU (JIS/EIA) of vertical rack space
Redundant forward receiver (optional)
Redundant power supply (optional)
Operation optical wavelength 1310 or 1550 nm optical input operation
RS232 control interface
Support Telnet or SNMP management by Ethernet
The A8KFR1 is an advanced Forward Optical Receiver designed for HFC network to convert the optical signal to RF signal for distribution, with high reliability, scalability, and cost-effectiveness. The A8KFR1 has wide range of operation bandwidth from 45 MHz to 770 MHz or 1 GHz and input optical power range from -5 dBm to 1 dBm.
The power supply module can operate with redundancy when two power supplies are installed. Also, the optical receiver module can operate with redundancy when two optical receivers are installed. For the network management, the A8KFR1 supports the remote management by SNMP.
Features
Operation bandwidth 45 to 770 MHz or 1 GHz
Supports 80 digital channels/10 analog channels or 110 analog channels loading performance
-5 dBm to +1 dBm received input power range
Located on the rear panel: rear mount RF ports, optical ports and alarm circuitry
Located on the front panel: test-point, gain control, slope control, and LED for easy setup
Occupies only 1RU (JIS/EIA) of vertical rack space
Redundant forward receiver (optional)
Redundant power supply (optional)
Operation optical wavelength 1310 or 1550 nm optical input operation
RS232 control interface
Support Telnet or SNMP management by Ethernet
