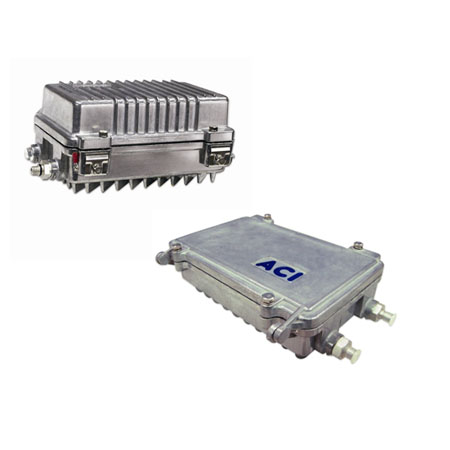

Line Extender Amplifier
Item No.: | ALE |
Supplier Details
Country: Taiwan
City: New Taipei City 248
Address: No.41, Wu Kung 6th Rd., Wu Kung Dist.
TEL: +886-2-22990666
Fax: +886-2-22990667

Online Showroom:
86 Products
Overview
The ACI ALE is a compact size, easy installation and cost effective 870 / 750 MHz one output line extender amplifier. This amplifier provides high quality RF distribution for HFC (hybrid fiber coaxial) network. The AC power source provides operating power to the amplifier’s active components via coaxial cable. All amplifiers support two-way operation at various standard frequency splits. The gain and slope align by plug-in pads and equalizers.
Feature
870 / 750 MHz
40-90 VAC cable power or 100-240 VAC line power
-20 dB directional test points at the input and output port and after the return signal amplifier
10 amp power passing
Plug-in pads and equalizers instead of gain and slope controlled potentiometers
Plug-in pads in .5 dB values
Plug-in equalizers in 1.5 dB cable increments achieving 1.1 dB of value
Attenuator pad & equalizer guides to aid in proper insertion of plug-ins
Two-way operation
Plug-in hybrids
The ACI ALE is a compact size, easy installation and cost effective 870 / 750 MHz one output line extender amplifier. This amplifier provides high quality RF distribution for HFC (hybrid fiber coaxial) network. The AC power source provides operating power to the amplifier’s active components via coaxial cable. All amplifiers support two-way operation at various standard frequency splits. The gain and slope align by plug-in pads and equalizers.
Feature
870 / 750 MHz
40-90 VAC cable power or 100-240 VAC line power
-20 dB directional test points at the input and output port and after the return signal amplifier
10 amp power passing
Plug-in pads and equalizers instead of gain and slope controlled potentiometers
Plug-in pads in .5 dB values
Plug-in equalizers in 1.5 dB cable increments achieving 1.1 dB of value
Attenuator pad & equalizer guides to aid in proper insertion of plug-ins
Two-way operation
Plug-in hybrids
