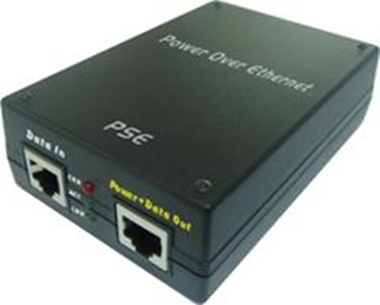

802.3af POE Injector - PSE151

802.3af POE Injector

Item No.: PSE151
Supplier Details
Country: Taiwan
City: Taichung City
Address: 1F No.2-3, Xinxing Rd., Beitun Dist.,
TEL: +886-4-24264758
Fax: +886-4-24264757
Online Showroom: 12 Products
FEATURES *Fully compliant with IEEE802.3af*LEDs-Link/ACT/ERP*Full Protection- OCP, OVP*Diagnostic Leads*UHN Tested SPECIFICATIONS *Input: 100-240VAC 50/60Hz 0.4A*Output: 48V 16W(Max)*Power + Data Out: 1/2&3/6 for Data;  4/5(+)&7/8(-) for Power(48V)*Data In: Connects PC/HUB/Switch*Weight: 0.16Kg*Dimensions: 108mmX74mmX33mm*Material: ABS 94V-0*Data rate: 10/100Mbps*Ethernet Cable: TIA/EIA 568B Cat.5 or  Cat.5e*Connector: RJ-45*Operating Temperature: 0°C~40°C*Storage Temperature: -40°C~70°C*Operating Humidity: 10%~80%RH*Storage Humidity: 5%~90%RH*LED Indicators for PSE*A:LNK(Green): Connection Indicator;  On=>good; Off=>no good*B:ACT(Green): Power Indicator;  On=>good; Off=>no good;  Blind=>currently supplying power*C:ERR(Red): Error Indicator(Short- circuit, overload or electricity  receiving device damage); On=>Error;  Off=>good*Certification: CE FCC UL   HOW TO ORDER PSE151AA: US typeB: EURO typeC: UK type
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

802.3af POE Injector

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
