CNC Contour Cutting Machine - SA-14AK

CNC Contour Cutting Machine

Item No.: SA-14AK
Supplier Details
Country: Taiwan
City: Taipei City
Address: 10F., No.200, Sec. 2, Jinshan S. Rd., Da’an Dist.
TEL: +886-2-23956686
Fax: +886-2-23217266
Online Showroom: 48 Products

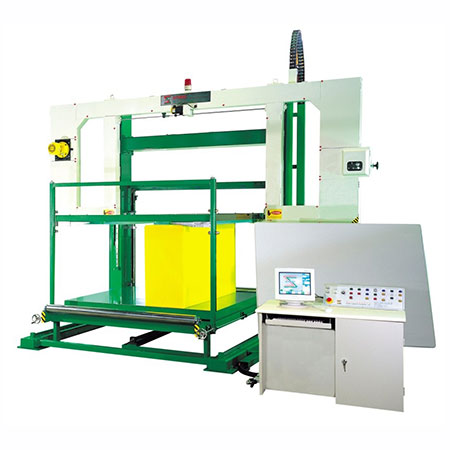

CNC Contour cutting machine(Knife type)
  1. Suitable for open cell foam, rebonded foam, idle foam, melamine foam and open cell EVA foam.
  2. Computer aided design to achieve consistent and accurate finished products
  3. Especially suitable to cut shapes like, round arc, symmetrical round arc, unsymmetrical arc, gear shaped line, zigzag pattern etc.
  4. After CNC contour cutting machine sets up the thickness and quantity of the foam by using computer programming, it starts auto cutting, the blade returns to its origin after cutting is completed.
  5. The blade is suitable for cutting any type of foam block.The density of the foam and the cutting speed is opposite, which means when the density of foam is higher, the blade cuts slower.
  6. Optional turntable, which allows the cutting material to turn 90 degrees then do the cutting: for example, cutting of pyramid, and cutting of equal side groove.
  7. For high density foam block, rebond foam, or smaller size foam a center support can be added, with turning unit to increase the blade cutting accuracy.
  8. Cutting speed can be accelerated or decelerated according to density and thickness of the cutting material by control panel.
  9. Manual operation mode available for quick maneuver of the material.
  10. Total weight of the machine: 3680 kg
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

CNC Contour Cutting Machine

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
