CNC Contour Cutting - SA-14AVK

CNC Contour Cutting

Item No.: SA-14AVK
Supplier Details
Country: Taiwan
City: Taipei City
Address: 10F., No.200, Sec. 2, Jinshan S. Rd., Da’an Dist.
TEL: +886-2-23956686
Fax: +886-2-23217266
Online Showroom: 48 Products

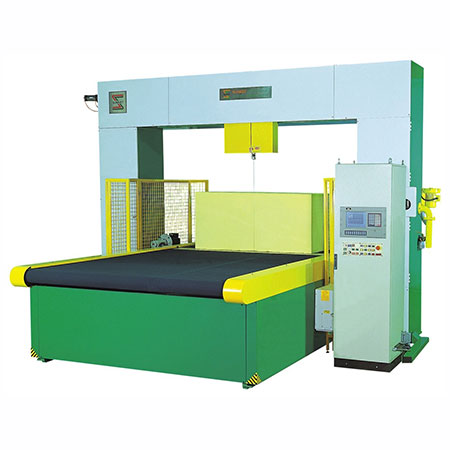

CNC Contour vertical cutting machine
  1. Computer aided design to achieve consistent and accurate finished products
  2. Especially suitable to cut shapes like, round arc, symmetrical round arc, unsymmetrical arc, gear shaped line, zigzag pattern etc.
  3. Suitable for cutting open cell foam, rubber, felt pads, rebonded foam (The density of rebonded foam should be under 60 kg/m³), and open EVA foam.
  4. Cutting speed varies according to the density of the material.
  5. Blade transmission is controlled by conveyor which can adjust the blade speed.
  6. Cutting speed can be accelerated or decelerated according to density and thickness of the cutting material by control panel.
  7. Auto grinding knife blade and blade deflection adjustment both can save time and strength
  8. Straight blade-up turning blade unit can elevate to cut foams with different density and height.
  9. Cooling system for the control box for operational stability.
  10. Wide conveyor belt, convenient for loading or unloading small size products.
  11. Manual operation mode available for quick maneuver of the material.
  12. Can be coordinated with scissor lift conveyor or extension conveyor to increase productivity.
  13. Total weight of the machine: 6100 kg
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

CNC Contour Cutting

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
