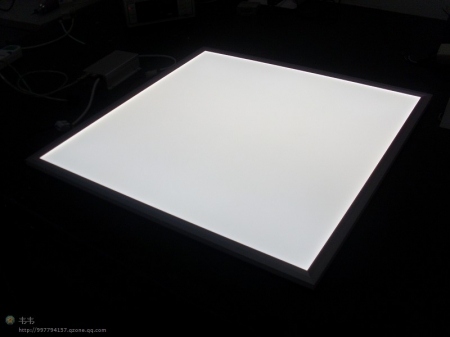

72W 600*600mm LED Panel Light
| Item No.: | EW-PL-600*600 72W |
Supplier Details
Country: China
City: Shenzhen
Address: Tong'an Hengye Building,NO3 of Tianxin Blvd,Shiyan Town,Baoan District,Shenzhen,China
TEL: +86-755-36863926
Fax: +86-755-82780858
Online Showroom:
30 Products
Product Specifications
Technical Parameter
Size:596*596*11mm
Input voltage:AC100-277V
Power:72W
LED type:Sumsung SMD5630
LED PCS:240PCS
Lumen:5300-5500lm
Color:Warm white, white
Color temperature:2700-8000k
CRI:>75
Life time:50000h
Warranty:3 years
Power Factor:>0.95
Beam Angle:120
Certifications:CE,FCC,RoHS,UL approved constant-current driver
Package
Inner Package(N.W):4.0KG
Inner Package Size:728*647*140mm
Outer Package(G.W):20.6KG
Outer Package Size:740*670*160mm
Packing:4 inner boxes in 1 outer boxes, EPE liner, carton packing
Features:
1.It is dimmable.
2.Sumsung SMD5630 as lighting sources.
3.Imported light diffusion material, mercury and lead free
4 Excellent heat dissipation structure
5.High efficiency, energy saving up to 60%
6.Aluminium frame and baked white paint for choices
7.Assemble in dust-free workshop
8.Newly added 1300 square meters workshop for panel production, due to expanded production scale
Heat dissipation Structure
Aging Panel Lights
